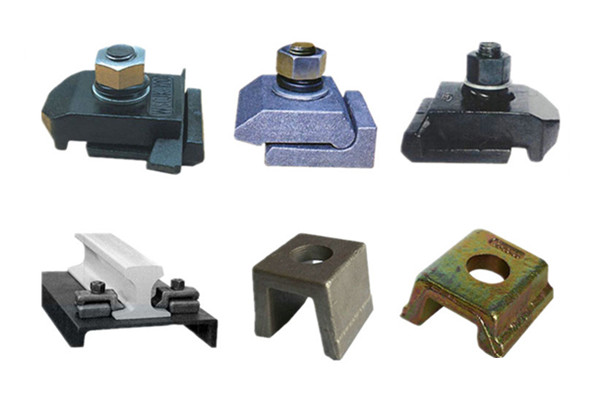

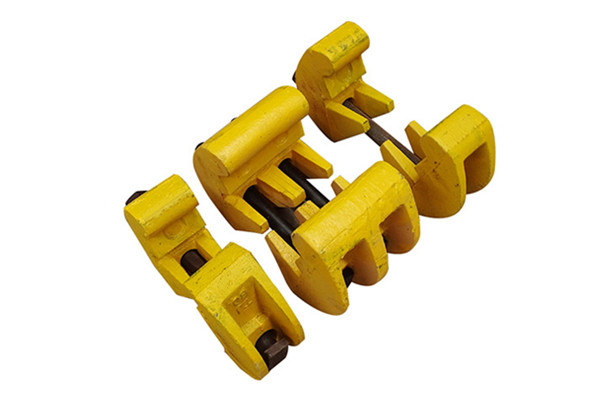

Crane rail clamps are devices used to keep the rail in a horizontal position but allow it to move longitudinally as necessary. Kingrail Parts can produce both bolt-on and weld-on rail clamps.
Specifications:

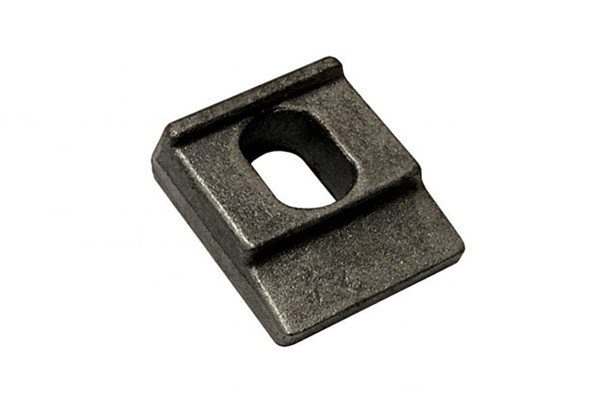

TGS Series for P18, P22, P24, P30 Light Duty Crane Rail
| Model | Rail Size |
a (mm) |
B (mm) |
| TGS22 | P22 | 64 | 204 |
| TGS24 | P24 | 63 | 202 |
| TGS30 | P30 | 71 | 218 |
| CGWK38 | P38 | 74 | 224 |
| CGWK43 | P43 | 74 | 224 |
| CGWK50 | P50 | 83 | 242 |
| CGWK70 | QU70 | 77 | 230 |
| CGWK80 | QU80 | 82 | 240 |

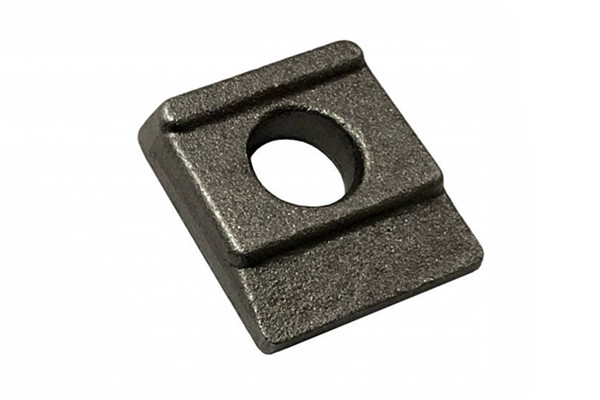

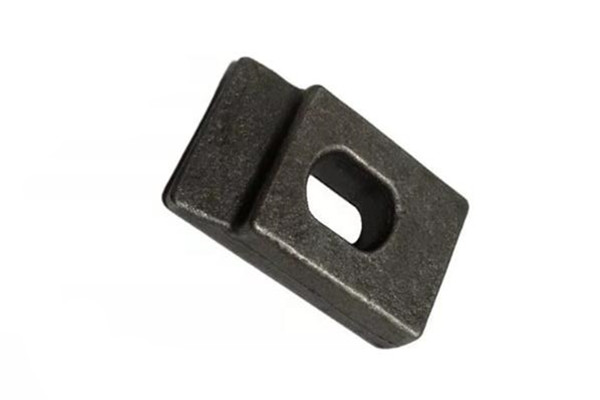

TG Series for P38, P43, QU70, QU80, QU100 Heavy Duty Crane Rail
| Model | Rail Size |
a (mm) |
b (mm) |
2e e=62 (mm) |
2s s=10(5) (mm) |
B B=b+2e+2s (mm) |
| TG38 | P38 | 97 | 194 | 124 | 20(10) | 338(328) |
| TG43 | P43 | 97 | 194 | 338(328) | ||
| TG50 | P50 | 106 | 212 | 356(346) | ||
| TG60 | P60 | 115 | 230 | 374(364) | ||
| TG70 | QU70 | 100 | 200 | 344(334) | ||
| TG80 | QU80 | 105 | 210 | 354(344) | ||
| TG100 | QU100 | 115 | 230 | 374(364) | ||
| TG120 | QU120 | 125 | 250 | 394(384) |

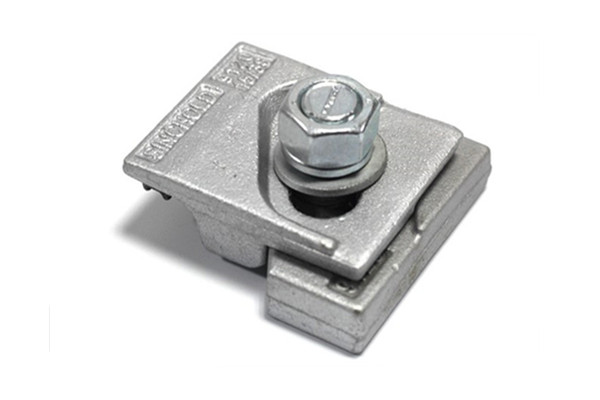

GTX Series for P type Crane Rail and A type Crane Rail
| Model | Rail Size |
A (mm) |
Min.W (mm) |
X1 with Pad (mm) |
X1 w/o Pad (mm) |
| GTX38 | P38 | 114 | 214 | 14 | 21 |
| GTX43 | P43 | 114 | 214 | ||
| GTX50 | P50 | 132 | 232 | ||
| GTX70 | QU70 | 120 | 220 | ||
| GTX80 | QU80 | 130 | 230 | ||
| GTX55 | A55 | 150 | 250 | ||
| GTX65 | A65 | 175 | 275 | ||
| GTX75 | A75 | 200 | 300 | ||
| GTX100 | A100 | 200 | 300 |

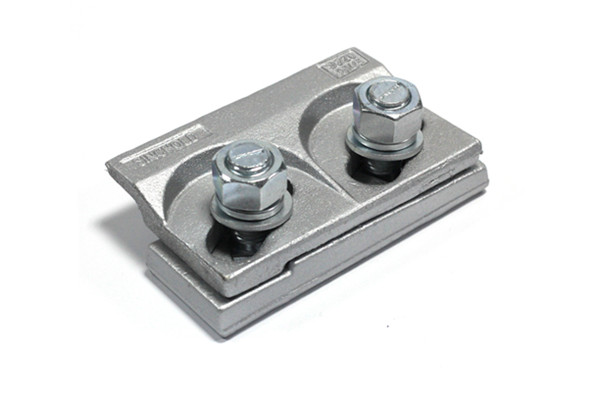

GTXD Series for P type Crane Rail and A type Crane Rail
| Model | Rail Size |
A (mm) |
Min.W (mm) |
X1 with Pad (mm) |
X1 w/o Pad (mm) |
| GTXD43 | P43 | 114 | 214 | 14 | 21 |
| GTXD50 | P50 | 132 | 232 | ||
| GTXD70 | QU70 | 120 | 220 | ||
| GTXD80 | QU80 | 130 | 230 | ||
| GTXD75 | a75 | 200 | 300 | ||
| GTXD100 | A100 | 200 | 300 | ||
| GTXD120 | A120 | 200 | 300 |
