CR 175 ASTM A759-2000 standard crane rails are widely used in South America.
Kingrail Parts can provide CR175 rails. The length is 12 meters. We can also provide other lengths as required.
Specification:
| Profile | Standard | Dimensions mm | Section S | Mass m | |||
|---|---|---|---|---|---|---|---|
| H | B | C | E | cm² | kg/m | ||
| CR175 | Americane | 152,40 | 152,40 | 108,00 | 38,10 | 110,30 | 86,80 |

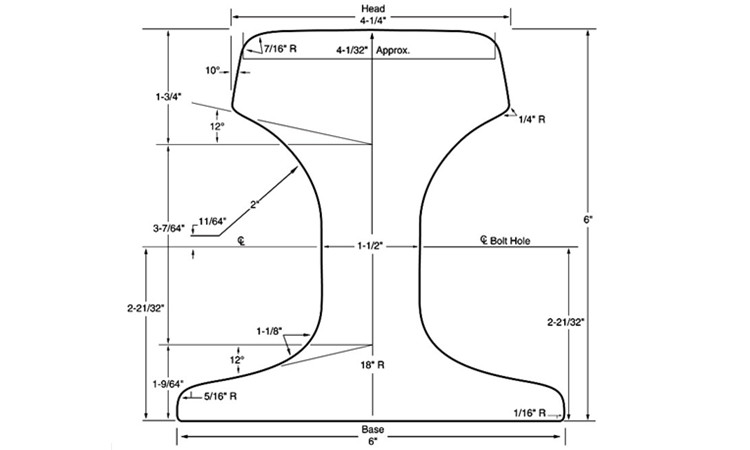

Drawing:
