Kingrail Parts can supply a wide range of rails, including light rail, 36kg rail, heavy rail, crane rail of different standards and specifications.
The 36kg light steel crane track can be used in mining industry and railway track. 36KG light steel rails can also be used as crane rails.
Specification:
Type: 36kg light rail
Material: Q235/55Q
Weight: 36.59KG/M
Standard: GB/T11264-2012
Length: 5-12m or other lengths according to customer requirements
type |
weight (kg/m) |
material |
length (m) |
36kg |
36.59 |
Q235/55Q |
6-12m |
rail height (mm) |
bottom width (mm) |
head width (mm) |
web thinkness (mm) |
128 |
115 |
60 |
13 |

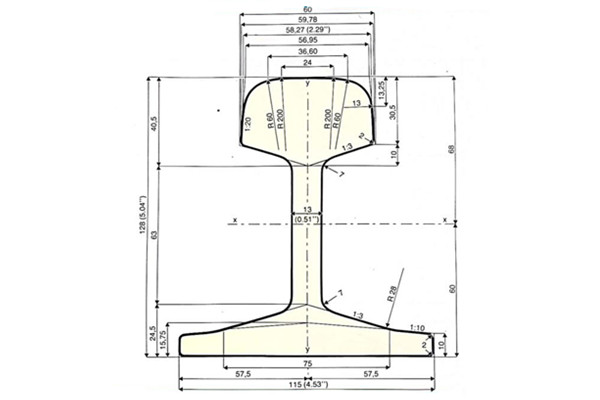

Drawing:
Manufacturing process
Raw materials--Pretreatment--Refining--Vacuum Degassing--Continuous Bloom Casting--Rolling--Heat treatment--Straightening--Inspection--Sawing and drilling--shipping
