UIC 60kg steel rail has good comprehensive mechanical properties and is suitable for railway sections with complex forces, and is widely used along railway lines in various countries. The 60kg steel rail can be used for laying main railway lines, seamless railway lines, mines, shaft rails, crane rails, ports, construction site light vehicle transportation rails, etc.
The production and acceptance of UIC 60kg rails are carried out according to UIC860 standard. The UIC860 standard is a unified technical standard formulated and implemented by the International Union of Railways (UIC is the abbreviation of its full French name).
Specification
Length: 12m~25m
Rating: 900A/1100
Origin: China
Standard: UIC 860
| Type | Head Width(mm) | Rail Height(mm) | Base Width(mm) | Web Thickness(mm) | Weight(kg/m) |
|---|---|---|---|---|---|
| UIC 60kg Rail | 172 | 150 | 74.3 | 16.5 | 60.21 |

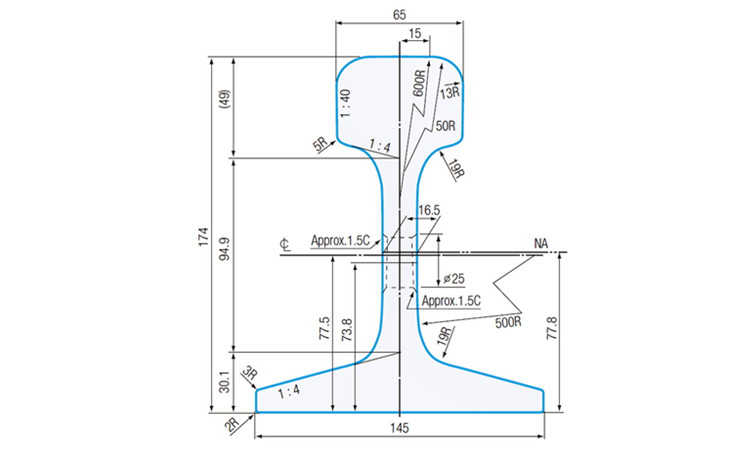

Drawing
Kingrail Parts can provide various specifications and quantities of rails for customers. Welcome to consult.
