Elastic rail clips are one of the commonly used rail fasteners in the rail fastener system. Generally speaking, rail clips are made of forged spring steel and have many uses.
Kingrail Parts is one of the largest rail clips manufacturers in China. The elastic rail clips produced by Kingrail Parts are made of the highest quality raw materials, are designed with high precision, and have high tensile strength and corrosion resistance.
We have the most modern rail clip production line. We have a daily production capacity of 100,000 rail clips. We can also customize according to customers' drawings and requirements.
Types of Rail Clips:
1. E-type Clip: E1609, E1809, E1813, E2001, E2039, E1817, E2006, E2007, E2009, E2055, E2056, E2063, E2091.
2. SKL Tension clips: SKL1, SKL3, SKL12, SKL14, SKL75
3. PR Series Clips: PR85, PR309A, PR401, PR415, PR401A
4. Other Rail Clips: Nabla clips, D type rail clip, Fast clip, gauge lock clip, Deenik clip
5. Non standard rail clips: You provide Rail Clips drawings and we will produce for your customized requirements.
|
Type |
Diameter |
Weight |
Material |
|
Type III Rail Clip |
Ø18 |
0.80kg/pc |
60Si2MnA |
|
E1609 |
Ø16 |
0.43 kg/pc |
60Si2MnA |
|
E1809 |
Ø20 |
0.61kg/pc |
60Si2MnA |
|
E1813 |
Ø18 |
0.62kg/pc |
60Si2MnA |
|
E2001 |
Ø20 |
0.80kg/pc |
60Si2MnA |
|
E2007 |
Ø20 |
0.80kg/pc |
60Si2MnA |
|
E2009 |
Ø20 |
0.80kg/pc |
60Si2MnA |
|
E2039 |
Ø20 |
0.80kg/pc |
60Si2MnA |
|
E2055 |
Ø20 |
0.80kg/pc |
60Si2MnA |
|
E2056 |
Ø20 |
0.80kg/pc |
60Si2MnA |
|
E2063 |
Ø20 |
0.80kg/pc |
60Si2MnA |
|
PR85 Rail Clip |
Ø13 |
0.25kg/pc |
60Si2MnA |
|
PR309A |
Ø19 |
0.85kg/pc |
60Si2MnA |
|
PR401 |
Ø20 |
0.97kg/pc |
60Si2MnA |
|
PR415 |
Ø20 |
0.95kg/pc |
60Si2MnA |
|
PR601A |
Ø20 |
1.03kg/pc |
38Si7 |
|
SKL 1 |
Ø13 |
0.48kg/pc |
60Si2CrA |
|
SKL 3 |
Ø13 |
0.48kg/pc |
60Si2CrA |
|
SKL 12 |
Ø13 |
0.53kg/pc |
38Si7 |
|
SKL 14 |
Ø13 |
0.53kg/pc |
60Si2MnA |
|
Special Rail Clip |
Ø13 |
0.48kg/pc |
60Si2MnA |
|
Russia Rail Clip |
Ø18 |
0.58kg/pc |
60Si2MnA |
|
Deenik Clip |
Ø25 |
0.49-0.68kg/pc |
60Si2MnA |
|
Single Anti-theft Rail Clip |
Ø20 |
0.25kg/pc |
60Si2MnA |

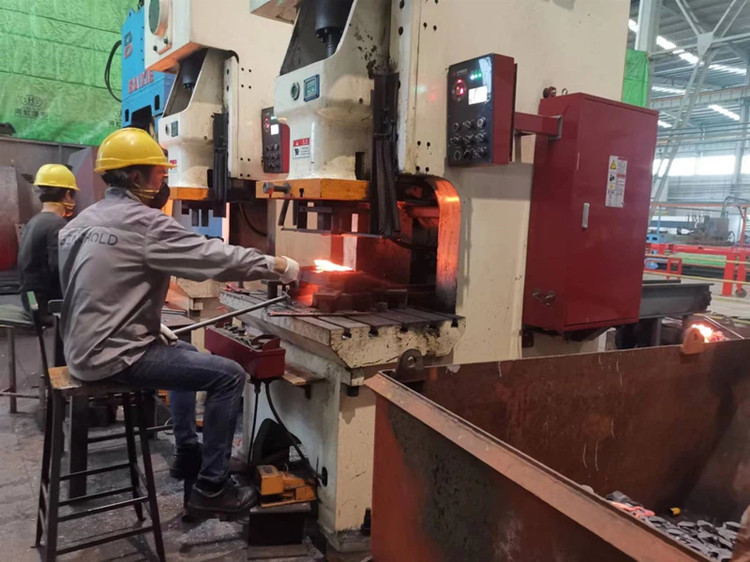

Rail Clips Manufacturing Process:
Shearing → heating to forging temperature → forming → quenching → tempering → inspection → packaging
Finished Rail Clip Inspection Machine:
Brinell hardness tester
Carbon and sulfur analyzer
Rockwell hardness machine testing metal materials
Automatic impact testing machine
Metallographic microscope
Automatic high-speed analyzer
Fatigue testing machine
Metallographic sample polishing machine
Metallographic sample positioning machine
