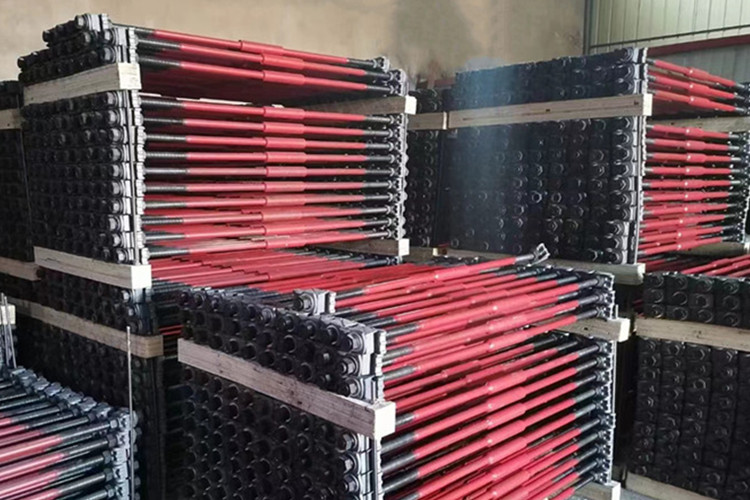

A rail gauge tie rod, sometimes called a gauge tie bar, is usually used to prevent the rail from spreading or tilting to stabilize the rail within a certain distance.
As a professional manufacturer, Kingrail Parts can produce both single-end and double-end types of gauge rods, both insulated and non-insulated versions.
Our production has obtained ISO9001:2008 certification and CRCC certification.
We can provide standard gauge rods for 56-½ inch rails and 60-140 lbs. We also produce 3/4 inch and 1 inch gauge rods for smaller rail sizes and special gauges.
Specifications
|
No. |
Part |
Quantity |
Specification |
Material |
|
1 |
rod |
1 |
M30 M36 |
3# |
|
2 |
iron card |
4 |
I type II type |
KTH350-10 |
|
3 |
plain washer |
4 |
M30 M36 |
3# |
|
4 |
nut |
4 |
M30 M36 |
3# |
|
5 |
spring washer |
4 |
M30 M36 |
65Mn |
Applicable: 43, 50, 60, 75kg/m rails
Working temperature: -40~60 degrees Celsius
Standard: TB/T1780-86
We can also customize production according to customer drawings and specific requirements.
