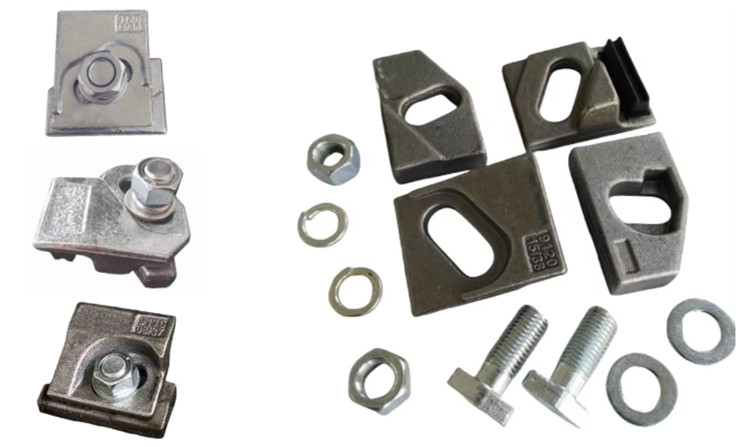

Crane rail clips are used to clamp crane rails to the crane base plates.
As a professional manufacturer, Kingrail Parts can provide a variety of crane rail clips. We can also customize crane rail clips according to customer specifications and requirements.
Specifications
|
RAIL CLIP SPECIFICATIONS |
||||
|
CLIP NO. |
CRANE RAIL |
CENTERLINE RAIL TO: |
HOLE DIA. |
|
|
SECTION |
A |
B |
||
|
62 |
104-lb. |
21/2" |
31/4" |
11/16" |
|
62 |
105-lb. |
219/32" |
311/32" |
11/16" |
|
62 |
135-lb. |
219/32" |
311/32" |
11/16" |
|
171 |
171-Ib. |
3" |
4" |
11/16" |
|
175 |
175-lb. |
3" |
41/8" |
11/16" |
|
CLIP NO. |
STANDARD TEE RAIL |
HOLE SIZE |
|
SECTIONS |
||
|
114 |
12 to 40-lb.ASCE |
21/32" Dia |
|
120 |
25 to 50-lb. ASCE & ARA |
13/16" Dia |
|
103 |
55 to 100-lb. ASCE |
11/16" x 25/32" |
|
106 |
60 to 100-lb.ASCE |
11/16" x 25/32" |
|
128 |
60 to 100-lb.ARA-B |
11/16" x 25/32" |
|
62 |
115, 131 and 132-lb. AREA |
11/16" Dia |
|
62 |
130-lb.PS |
11/16" Dia |
Why choose Kingrail Parts
1. The production plant covers an area of more than 100,000 square meters, with 220 workers and 20 technicians
2. Our crane rail lips meet international standards such as BS, UIC, DIN, ASTM, AISI, etc.
3. Passed ISO9001-2008 certification
4. Customized according to your specific requirements.
5. Our railway products are exported to Asia, Europe, America, the United States, Germany, the United Kingdom, France, Thailand, Vietnam and other places.
Get more help
Please contact us for more information and quotes.
