Rail fastening systems are used to secure rails and railroad sleepers. The function of the rail fastening system is to maintain the rail gauge and prevent vertical and horizontal movement of the rail relative to the sleeper position.

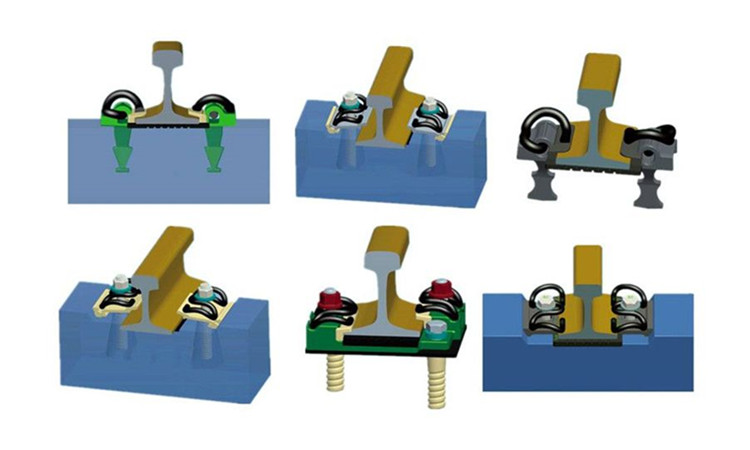

As a professional rail fastening supplier, Kingrail Parts has been providing high-quality and safe rail fastening systems for different rail since its establishment in 2005. Whether it is high-speed railway track, ordinary railway track or subway, we can provide rail clip fastening system, SKL rail fastening system, KPO rail fastening system and spring blade fastening system.
1.SKL rail fastening system
|
Item |
SKL tension clip |
Ss35 screw spike |
Flat washer |
Plastic dowel |
Guide plate |
Rail pad |
|
Quantity |
2 |
2 |
2 |
2 |
2 |
1 |
|
Material |
60Si2CrA, 60Si2CrA, 38Si7 |
Grade 4.6: Q235 |
Q235 |
HDPE, Reinforced Nylon 66 (PA66) |
Reinforced Nylon 66 (PA66) |
EVA, or rubber |
2.E-type fastening system
|
Item |
E-clip |
Shoulder |
Rail pad |
Insulator |
|
Quantity |
2 |
2 |
1 |
2 |
|
Material |
60Si2MnA, 60Si2CrA |
QT500-7, QT450-10 |
HDPE, rubber or EVA |
Reinforced Nylon 66 (PA66) |
3.KPO rail fastening system
|
Item |
Rail clamp |
Bolt |
Nut |
Plain washer |
Screw spike |
Spring washer |
Base plate |
|
Quantity |
2 |
2 |
2 |
2 |
4 |
4 |
1 |
|
Material |
Q235 |
4.6 |
4 |
Q235 |
4.6 |
38Si7 |
QT450-10 |
|
Unit weight （kg/pc） |
0.67 |
0.302 |
0.153 |
0.05 |
0.553 |
0.08 |
7.932 |
|
Surface Treatment |
Zinc |
Zinc |
Zinc |
Zinc |
Hot-dip galvanized |
Hot-dip galvanized |
Plain |
4.Nabla rail fastening system
|
Item |
Nabla clip |
insulator |
Screw spike |
Spring washer OR Plastic dowel |
|
|
Quantity |
2 |
2 |
2 |
Spring washer |
Plastic dowel |
|
2 |
2 |
||||
|
Material |
60Si2MnA, 60Si2CrA |
Reinforced Nylon 66 (PA66) |
Grade5.6:35# |
ML08AI |
HDPE, Reinforced Nylon 66 (PA66) |
5.Spike fastening system
|
Item |
Track/Cut spike |
Tie plate |
|
Quantity |
5 |
1 |
|
Material |
Q235A |
QT450-10 for |
6.High-speed rail fastening system
|
High Speed WJ-7 Rail Fastening System |
High Speed WJ-8 Rail Fastening System |
High Speed Type V Fastening System |
||||||
|
Item |
Quantity |
Material |
Item |
Quantity |
Material |
Item |
Quantity |
Material |
|
Rail clip |
2 |
60Si2MnA |
Rail clip |
2 |
60Si2MnA |
Rail clip |
2 |
60Si2MnA |
|
T-bolt nut washer |
2 |
Q235A |
Screw spike |
2 |
20MnTiB |
Screw spike |
2 |
20MnTiB |
|
Rail insulator |
2 |
PA66 |
Flat washer |
2 |
Q235A |
Flat washer |
2 |
Q235A |
|
Tie plate |
1 |
QT450-10 |
Rail insulator |
2 |
PA66 |
Space pieces |
2 |
Q235A |
|
Insulated buffer plate |
1 |
Rubber |
Guide plate |
2 |
Reinforced Nylon 66 (PA66) |
Gauge apron |
2 |
Rubber |
|
Rail pad |
1 |
EVA, or rubber |
Rail pad |
1 |
EVA, or rubber |
Rail pad |
1 |
EVA, or rubber |
|
Anchor bolt |
2 |
Q235A |
Tie plate |
1 |
QT450-10 |
Adjustable pad |
1 |
PE |
|
Spring washer |
2 |
60Si2Mn |
Plastic dowel |
2 |
HDPE, Reinforced Nylon 66 (PA66) |
Plastic dowel |
2 |
HDPE, Reinforced Nylon 66 (PA66) |
|
Plain washer |
2 |
QT450-10 |
Rail adjustable pad |
2 |
PE |
|||
|
Plastic dowel |
2 |
HDPE, Reinforced Nylon 66 (PA66) |
Tie Plate adjustable pad |
2 |
PE |
|||
7.Fist fastening system
Fist fastening system is widely used In South Africa, Swaziland, Botswana, Namibia, it is composed of three parts, rail clip, base plate and insulated steel pin.
Why choose Kingrail Parts
1. The production plant covers an area of more than 100,000 square meters, with 220 workers and 20 technicians
2. Our rail fastening system products meet international standards such as UIC, EN BS, DIN, JIS, AREMA, BS.
3. ISO9001-2008 certified
4. Customized according to your specific requirements.
5. Our rail fastening system products are exported to Asia, Europe, America, the United States, Germany, the United Kingdom, France, Thailand, Vietnam and other places.
