Rail anchors or anti-creep devices are spring steel clips fixed to the underside of the rail baseplate, against both sides of the sleepers to prevent the rail from moving longitudinally due to temperature changes or vibrations.
Kingrail Parts is a professional rail anchor manufacturer in China. Our rail anchor quality parameters can meet UIC, EN, DIN, JIS international standards, and are always available in large quantities.
Our rail anchor products
1. Rail anchors are suitable for 50Kg, 85Kg, 90/91LB, 115RE /136RE, UIC54, UIC60 and other rails. T-type and V-type rail anchors can be produced, and can also be customized according to customer special requirements.
|
Rail Anchor |
|||
|
Type |
used in 50Kg, 85Kg,90/91LB, 115RE /136RE ,UIC54 & UIC60 rail or other types upon customers’ drawings. |
||
|
Material |
60Si2MnA |
45# |
QT500-7 |
|
Chemical composition(10%) |
C:0.56-0.64 |
C:0.42-0.50 |
C:3.60-3.80 |
|
Mn:0.60-0.90 |
Mn:0.50-0.80 |
Mn:≤0.6 |
|
|
Si:1.60-2.00 |
Si:0.17-0.37 |
Si:2.50-2.90 |
|
|
Cr:≤0.35 |
Cr:≤0.25 |
|
|
|
P:≤0.03 |
P:≤0.035 |
P:≤0.08 |
|
|
S:≤0.03 |
S:≤0.035 |
S:≤0.025 |
|
|
Surface |
plain (oiled),color painting |
||
|
Standard refers |
AS1085.10-20002 , DIN, ISO-9001 |
||
2. Rail anchors for 50kg, 70lb, 80lb, 90/91lb and other rails.
|
Type |
Material |
Weight(g/pc) |
|
50kg |
60Si2MnA |
800 |
|
70LB |
60Si2MnA |
800 |
|
85LB |
60Si2MnA |
800 |
|
90/91LB |
60Si2MnA |
800 |
3. Russian Railway Anchor
The Russian rail anchor is a kind of casting product used in the construction of railway. It is made of QT400-15 materials. Its mechanical properties in the as-cast state are fully compliant to the TOCT 7293-85.
Why Kingrail Parts

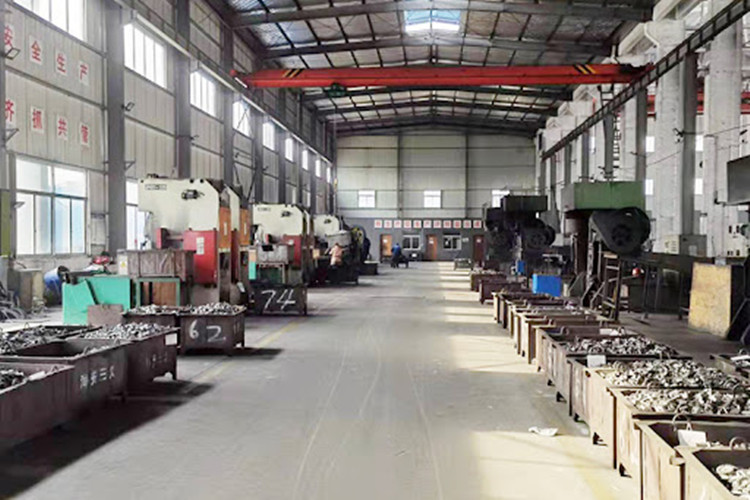

1. The production plant covers an area of more than 100,000 square meters, with 220 workers and 20 technicians
2. Our rail anchor products meet international standards such as UIC, EN BS, DIN, JIS, AREMA, BS
3. Passed ISO9001-2008 certification
4. Customized according to your specific requirements
5. Our rail anchor products are exported to Asia, Europe, America, the United States, Germany, the United Kingdom, France, Thailand, Vietnam and other places
Get more help
If you have a railway maintenance project, please contact us. We can provide you with the best rail anchor solution.
