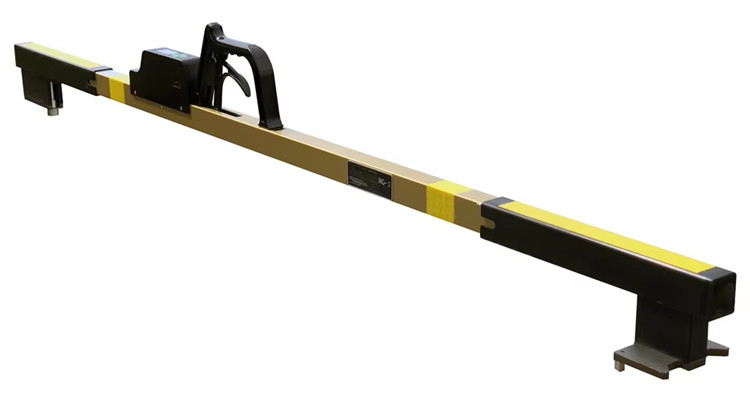

Digital track gauge is used to measure track gauge, check rail gauge, back-to-back distance, superelevation.
Kingrail Parts is the largest railway measuring tool manufacturer in China. We can provide you with the best OLED display digital track gauge.
Specifications
|
Model(1435mm) |
KR-W-II 1435 |
|
Track gauge(mm) |
1410-1470 |
|
Check Rail Gauge(mm) |
1381-1401 |
|
Back to back distance(mm) |
1338-1358 |
|
Super-elevation range(mm) |
-150~+150 |
|
Super-elevation resolution(mm) |
1 |
|
Track gauge resolution(mm) |
1 |
|
Application rail line |
railway speed less than 160km/h |
|
Model for narrow gauge 600mm 900mm 1067mm Model for broad gauge 1520mm 1600mm 1676mm for choose. |
|
Why choose Kingrail Parts
1. The production plant covers an area of more than 100,000 square meters, 220 workers and 20 technicians
2. Our digital track gauge products meet international standards such as UIC, EN BS, DIN, JIS, AREMA, BS.
3. ISO9001-2008 certified
4. Customized according to your specific requirements.
5. Our digital track gauge products are exported to Asia, Europe, America, the United States, Germany, the United Kingdom, France, Thailand, Vietnam and other places.
Get more help
If you have a railway maintenance project, please contact us. We can provide you with the best digital tack gauge solution.
Inquiry Now
