50E4 Railway Rail is a high-end heavy rail designed to meet the stringent requirements of European mainline railways, heavy-haul freight networks and industrial heavy-haul systems. The rail complies with EN 13674-1 and EN 13674-4 standards and is manufactured from advanced pearlitic steel grades (R260, R350HT)
Kingrail Parts can supply a wide range of rails including light rails, EN standard rails such as 50E4 rails, heavy rails, crane rails, etc., with different standards and specifications.
Specifications
Type: Heavy Duty Rail
Material: R260/R350HT
Weight: 50.46kg/m
Standard: EN 13674-1-2003
|
Product Name |
50E4 rail |
||||||
|
Standard |
EN 13674-1-2003 |
||||||
|
Model |
DIMENSION |
Weight |
Material |
Length |
|||
|
A(mm) |
B(mm) |
C(mm) |
t(mm) |
(KG/M) |
(m/PC) |
||
|
50E4 rail |
70 |
152 |
125 |
15 |
50.46 |
R260/R350HT |
12-25 |

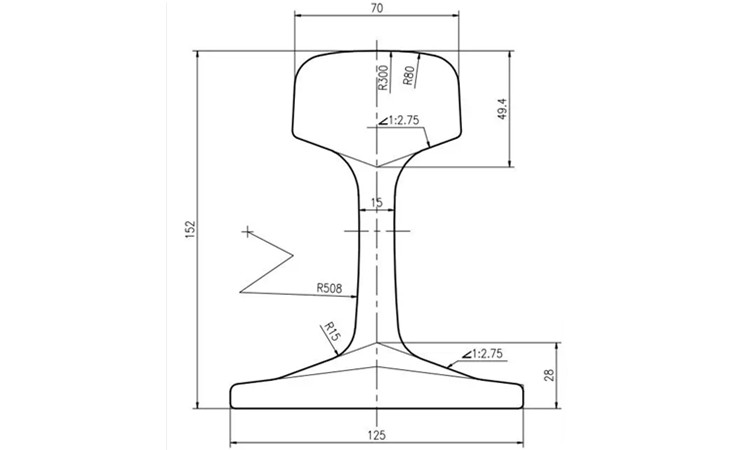

Drawings
