The A45 rail—also known as the A45 crane rail or DIN 536 A45 rail—is a light-to-medium-duty crane rail widely used in workshops, warehouses, logistics facilities, and small gantry crane systems. With a linear weight of 22.1 kg/m and a rail head width of 45 mm, it offers a balance of strength, durability, and cost-effectiveness, making it suitable for industrial lifting and material handling applications.
Kingrail Parts manufactures A45 rails in accordance with the DIN 536 standard—a widely recognized European standard for crane rails—ensuring compatibility with common crane wheels, clips, pads, and fastening systems.
Specifications
Material: 700/900A/1100
Weight: 22.1 kg/m
Length: 10–12 m
Standard: DIN 536-1-1991
|
Type of Rail |
Standard |
Dimensions mm |
Steel Grade |
Mass M |
|||
|
Height |
Base Width |
Head Width |
Web Thickness |
kg/m |
|||
|
A45 |
DIN 536 P1:1991 |
55,00 |
125,00 |
45,00 |
24,00 |
50Mn |
22,10 |

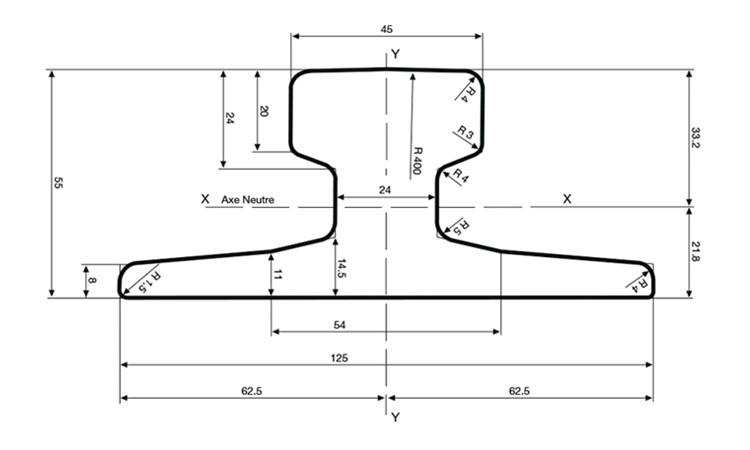

Drawing
