Kingrail Parts can supply all kinds of steel rails, including light steel rail, like JIS 15kg steel rail, heavy rail, crane rail with different standards and specifications.
JIS 15kg steel rail is mainly used on the ground track for factory, and mine tunnel.
Specifications:
Size: 15kg/m
Length: 5-12m or other length according to customers’ requirement
Material: Q235B
Weight: 15.20Kg/m
Standard: JIS E1103-91/JISE 1101-93
Application: Railway Rail, Mine tunnel, etc.
| type | weight (kg/m) | material | length (m) |
| 15kg | 15.20 | Q235/55Q | 6-8m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 79.37 | 79.37 | 42.86 | 8.33 |
15KG Rail Suppliers:
We are a professional steel rail manufacturer in China, if you need light rail. Please contact us for a quote.

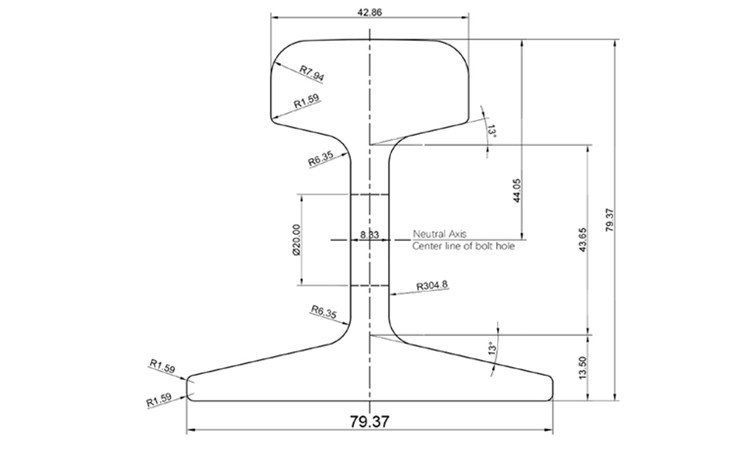

Drawing:
