ASCE 30 rails, also known as 30 lb/yd ASCE rails, weigh 30 lbs. per yard. Due to its modest size, the ASCE 30 rail is suitable for most standard load rail cranes and therefore sells well. The ASCE 30 rail is one of the most popular ASCE rails in the US and other countries.
Specifications:
Rail Type: 30 as
Section number: 3040
Nominal Weight: 25 lbs/yd
Standard Length: 30' (20' and 40' also available)
Standard Drilling: 2" x 4" with 3/4" diameter hole
Splice bar length: 16-1/8"
Splice bar weight: 6 lbs/pr with hardware: 8 lbs/pr
Track Bolts: 5/8" x 2-1/2"
30 LB ASCE Rail Suppliers
Kingrail Parts can supply all kinds of rails, including light rail, heavy rail, crane rail, and other rails of different standards and specifications, such as ASCE standard 30 LB rails.

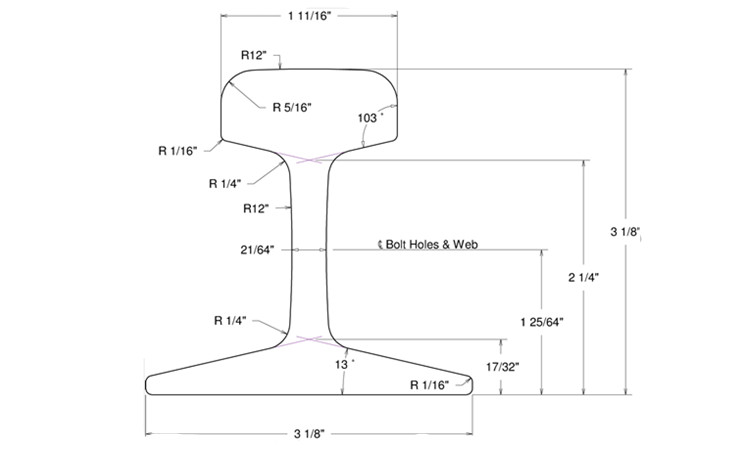

30 LB ASCE Rail CAD
