Arema 115LB 115RE TR57 rails are mainly used for railway rails, crane rails, underground mining rails, factories, ports, etc.
Kingrail Parts can provide various rails, including light rails and heavy rails, such as the American Arema 115LB 115RE TR57 rail, different standards and specifications of crane rails.
Dimensions:
Type |
Head Width(mm) |
Rail Height(mm) |
Base Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
115RE(115lb) |
69.06 |
168.28 |
139.7 |
15.88 |
56.9 |
Rail Type: |
115RE(TR57) |
Nominal Weight(lbs/yd) |
115 |
Standard Length |
39', 80' |
Standard Drilling: |
3-1/2''×6'' or 3-1/2''×6''×6'' with 1-1/8'' dia. holes |
Rail Joint Length: |
24'' or 36'' |
Rail Joint Weight: |
4-hole joint: 68 lbs/pr with hardware: 76 lbs/pr |
Rail Bolt: |
1''×6'' |

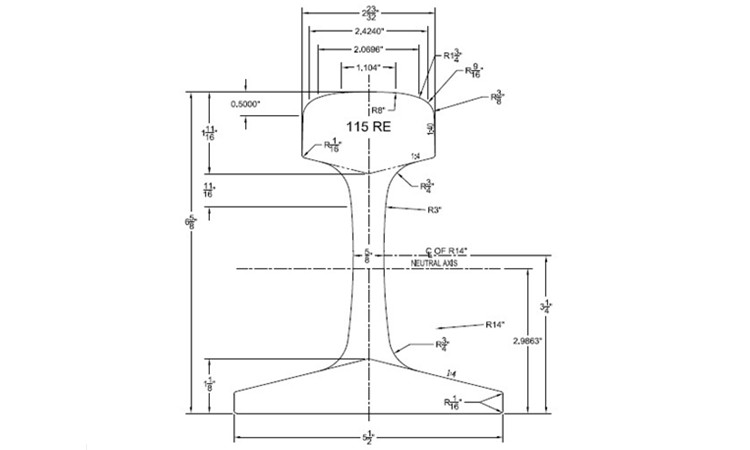

Drawing:
