The 22kg light rail is mainly used for the laying of temporary transportation lines and light railway lines in forest areas, mining areas, factories, and construction sites.
Kingrail Parts can provide 22 kg/m rail. Materials include Q235 and 55Q. The lengths are 6m, 8m, and 10m. We can design and build rail lines to your requirements and can also provide matching fasteners.
Specification:
Material: Q235/55Q
Weight: 22.30Kg/m
Length: 6-10m
Standard: GB11264-2012
| type | weight (kg/m) | material | length (m) |
| 22Kg | 22.30 | Q235/55Q | 6-10m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 93.66 | 93.66 | 50.8 | 10.72 |

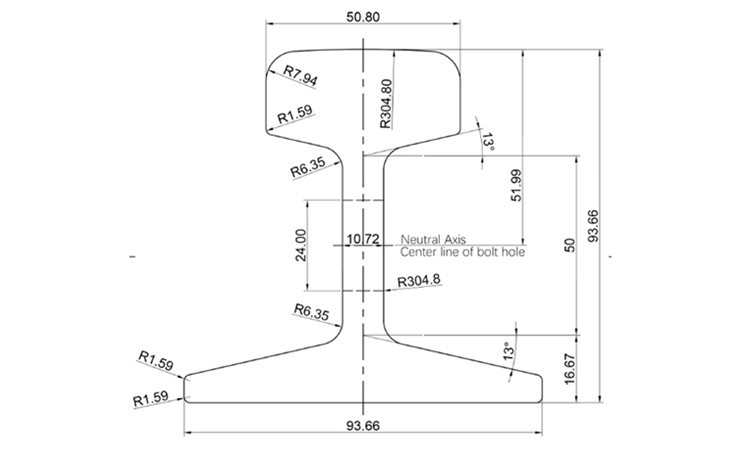

Drawing:
