Kingrail Parts is one of the most professional fish plate manufacturers in China. We can produce more than 30 kinds of rail joint fishplates, which are suitable for light rail, heavy rail and crane rails.

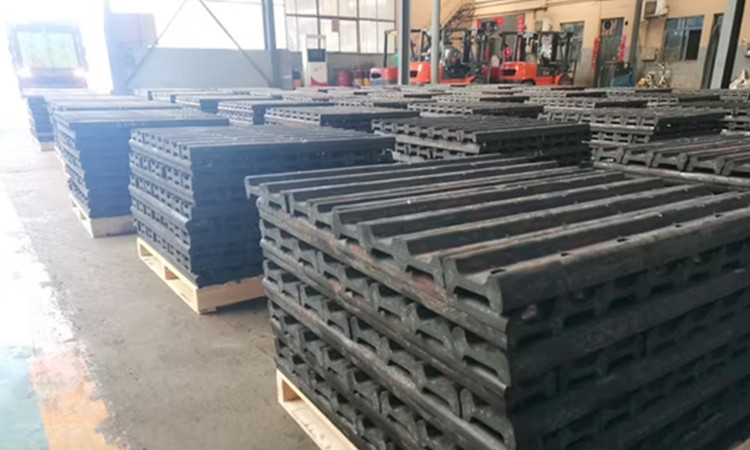

Railroad fishplates, also called rail joints or splicing bars, are metal rods that are connected to the ends of two railroad rails to connect them together. High-quality railway fishplates can effectively reduce the impact of wheels on the rail connection section, and increase the stability and continuity of the train when passing through the connection section.
Types of Fish Plates:
1). Common fish plate
We provide 4-hole or 6-hole fish plate, suitable for 60 kg, UIC, 54 kg UIC, 52 kg UIC, 52 kg, 90A, 90R, 80A, 80'O', 88'O', 75R, 60R, 115 RE , 132 RE, 50R rail, etc.
2). Joggled fish plate
This product is a special fish plate. It is suitable for the clamp assembly of various rail sections, and is suitable for the temporary repair of crack-welded rail joints. Used as an emergency clamp, the articulated fishplate can be quickly and temporarily repaired, allowing continued movement through the part at a reduced linear speed.
3). Compromise fish plate
We produce specially designed fishplates that can connect two different rail sections when different customers need it.
Hot Selling Fish Plates:
|
Type |
Length/Diameter |
Weight(Kg) |
|
115RE |
4 hole- 24 ″ |
17.04 |
|
115RE |
6 hole -36 ″ |
25.56 |
|
132-136RE |
4hole-24 ″ |
17.75 |
|
132-136RE |
6hole-36 ″ |
26.63 |
|
UIC60 |
4 hole - 630/ ￠ 26 |
18.07 |
|
UIC60 |
4 hole-600/ ￠ 28 |
17.47 |
|
UIC60 |
4 hole - 630/ ￠ 25 |
18.1 |
|
UIC54 |
4hole |
14.34 |
|
UIC54 |
6hole- 800 |
19.94 |
|
BS80A |
4hole |
6.5 |
|
BS90A |
685.8 / ￠ 26 |
13.23 |
|
BS90A |
792.9/ ￠ 26 .2 |
15.34 |
|
90/91LB |
4 hole |
18.08 |
|
90/91LB |
6hole |
19.9 |
|
50Kg |
4hole |
14.3 |
|
50Kg |
6hole |
19.5 |
|
BS75R |
4hole |
6.56 |
|
BS60A |
4hole |
5.61 |
|
S49 |
4 hole |
9.71 |
International standards for railway fishplates:
UIC standard railway fishplate
|
Standard |
Material |
Size(kg) |
Tensile strength Rm |
Yield strength |
Elongation A |
Reduction of Area Z |
Brinell Hardness |
Cold Bend d=3a |
|
UIC864-4& UIC864-8 |
Chinese steel grade 40# |
U79–UIC54, U85–UIC60 |
550-650Mpa |
N/A |
≥18% |
N/A |
N/A |
N/A |
DIN standard railway fish plate
|
Standard |
Material |
Size(kg) |
Tensile strength Rm |
Yield strength |
Elongation A |
Reduction of Area Z |
Brinell Hardness |
Cold Bend d=3a |
|
DIN5902-1995 |
Chinese steel grade Q235/Chinese steel grade Q295 |
S30 for FL30 rail, S33 for FL33 rail, S41 for FL41 rail, S49 for FL49 rail, FL10, FL14, FL18, FL20, FL41-54 |
≥ 375 Mpa |
≥ 235 Mpa |
≥ 21% |
N/A |
N/A |
N/A |
China Railway Fishplate
|
Standard |
Material |
Size(kg) |
Tensile strength Rm |
Yield strength |
Elongation A |
Reduction of Area Z |
Brinell Hardness |
Cold Bend d=3a |
|
TB/T2345-2008 |
Chinese steel grade 55# |
43, 52, 60, 75 |
≥ 785Mpa |
≥ 520Mpa |
≥ 9% |
≥ 20% |
HBW 227-388 |
30 degree, no crack |
BS standard railway fish plate
|
Standard |
Material |
Size(kg) |
Tensile strength Rm |
Yield strength |
Elongation A |
Reduction of Area Z |
Brinell Hardness |
Cold Bend d=3a |
|
BS47-1 |
Chinese steel grade 40# |
BS75R, BS80A, BS90A, BS100A, BS113A |
550-650Mpa |
N/A |
≥ 18% |
N/A |
N/A |
N/A |
South American Standard Railway Fishplate
|
Standard |
Material |
Size(kg) |
Tensile strength Rm |
Yield strength |
Elongation A |
Reduction of Area Z |
Brinell Hardness |
Cold Bend d=3a |
|
According to Customer's requirements |
Chinese steel grade 50# or customized |
TJ57, TJ ASCE90, TJ UIC60(Brazilian) 75LBS A.S.C.E, 75LBS BSS, 80LBS A.S.C.E, TJ BS80A(Peruvian) |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
Non-standard railway fish plate
|
Standard |
Material |
Size(kg) |
Tensile strength Rm |
Yield strength |
Elongation A |
Reduction of Area Z |
Brinell Hardness |
Cold Bend d=3a |
|
According to Customer's requirements |
Chinese steel grade 50# |
85LB, 85LB-80LB |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
AREMA Standard Railway Fishplate
|
Standard |
Size(kg) |
Tensile strength Rm |
Yield strength |
Elongation A |
Reduction of Area Z |
Brinell Hardness |
Cold Bend d=3a |
|
AREMA 2007 |
115RE, 119RE, 132RE, 136RE, 141RE... |
N/A |
N/A |
N/A |
N/A |
N/A |
N/A |
Contact Us
Please contact us for more information and a quote.
