Railroad tie plates are used to provide support to rails and prevent them from moving. As a professional supplier, Kingrail Parts can provide railroad tie plates for various rails. We can also customize tie plates according to customer specifications and requirements.

We only produce high-quality railroad tie plates. Our railroad tie plates can meet GB, DIN, ISO, ANSI/ASTM, B7, BS, JIS and other standards.

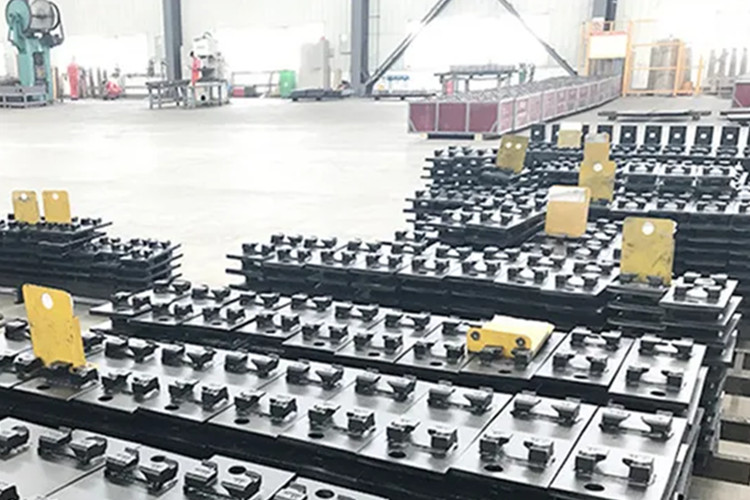

Our railroad tie plates

1. Single shoulder tie plates

For single shoulder tie plates, the rail shoulder is designed at the field end of the tie plate. The short end or gauge end of the tie plate is inside the track, so the customer always needs the rail bottom width. Single shoulder tie plates are usually used for track weights from 56 pounds to 100 pounds.

2. Double shoulder tie plates

Double shoulder bottom plates can be selected in 2-hole, 4-hole, 5-hole, 6-hole, 8-hole and other forms according to customer needs. Double shoulder bottom plates are generally used for rails above 100lb.

3. Casting tie plates

Casting is a common process for producing rail sleeper plates and is also a way to save costs.

Name: Casting rail sleeper plates

Type: Applicable to UIC54, UIC60, 50kg rails, 60kg rails, S49 and ordering sizes

Material: QT500-7 or QT450-10 (mild steel, high carbon steel forging, low carbon steel S275JR, Q235, etc. rolling)

Standard reference: UIC864-6

4.AREMA standard tie plates

For the US market, common sizes include 11-inch, 14-inch and 14-3/4-inch rail sleeper plates, which are usually suitable for 5-1/2-inch and 6-inch width rail bases.

5. AREMA Hook Double Tie Plate

Get More Help

Please contact us for more information and a quote.
