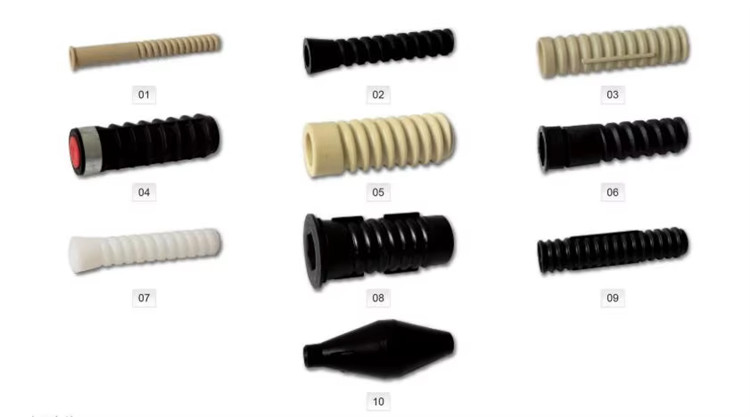

Rail plastic dowels are fasteners for screw spikes or anchor bolts, which are embedded in concrete or wooden sleepers and installed together with screw spikes, guide plates, rail clips, etc. to fasten rails.
As the largest rail plastic dowel supplier in China, Kingrail Parts can provide plastic dowels in various sizes and materials. We can also customize plastic dowels according to customers' specifications and requirements.
Specifications
|
Name |
Rail plastic dowel |
|
|
Type |
For different sizes of screw spikes or anchor bolts |
|
|
Material |
Reinforced Nylon 66 (PA66: Nylon 66.69%, glass fiber 30%, other 1%) |
HDPE |
|
Technical specifications |
Density:1.3-1.45g/cm3 Tensile strength: ≥170Mpa Elongation: ≤4.4% Bending Strength: ≥250Mpa Impact Strength(No gap): ≥80KJ/m2 Melting point:250-270°C Insulation resistance:≥1×108Ω Glass fiber content:30-35% Hardness:≥110HRR |
Density: 0.95-0.98g/cm3 Tensile strength: ≥19Mpa Elongation: >80% Melting point: 170-190°C Insulation resistance: ≥1×1010Ω Hardness:≥98A |
|
Color |
Yellow, black, white, blue, green, just to name a few. |
|
Why choose Kingrail Parts
1. The production plant covers an area of more than 100,000 square meters, with 220 workers and 20 technicians
2. Our rail plastic dowel products meet international standards such as UIC, EN BS, DIN, JIS, AREMA, BS.
3. ISO9001-2008 certified
4. Customized according to your specific requirements.
5. Our plastic dowel products are exported to Asia, Europe, America, the United States, Germany, the United Kingdom, France, Thailand, Vietnam and other places.
Get more help
If you have railway construction and maintenance projects, please contact us. We can provide you with the best rail plastic dowel solutions.
