Rail clips are used for railroad sleepers to fix the rails on both sides. Rail clips are usually made of forged spring steel and manufactured by hot forging process.

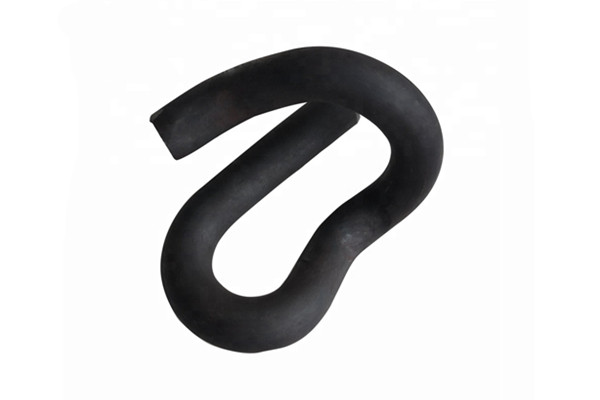

We manufacture a wide variety of high-quality rail clips. PR601A rail clip is one of Pandrol PR rail clips.
PR601A Rail Clip Specifications:
Raw material: 60Si2MnA
Diameter: 22mm
Weight: 1.23Kg
Hardness: HRC44~48
Toe load: more than more than 2000 bls
Surface: natural color, black oil, red oil or according to customer requirements
Fatigue: 3 million cycles without cracking
Certification: ISO9001:2015
Application: Railway Fastening System
Origin: China
Rail Clip Production Process:
Shearing-heating to forging temperature-forming-quenching-tempering-inspection-packaging.
Kingrail Parts can also provide the following rail clips:
1. E-type rail clips: E1609, E1809, E1813, E2001, E2039, E1817, E2006, E2007, E2009, E2055, E2056, E2063, E2091.
2. PR series rail clips: PR85, PR309A, PR401, PR415, PR401A.
3. SKL tension clamp: SKL1, SKL3, SKL12, SKL14, SKL75.
4. Other rail clips: Russian rail clips, special rail clips, quick clips, deenik clips
5. Customize rail clip according to drawings or customer requirements.
