Rail clip, also known as elastic rail clip, is used for railroad sleepers to fix the rails on both sides. Rail clips are usually made of forged spring steel and manufactured by hot forging process.

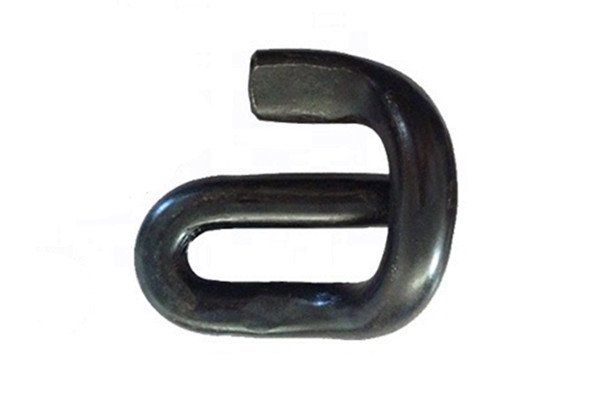

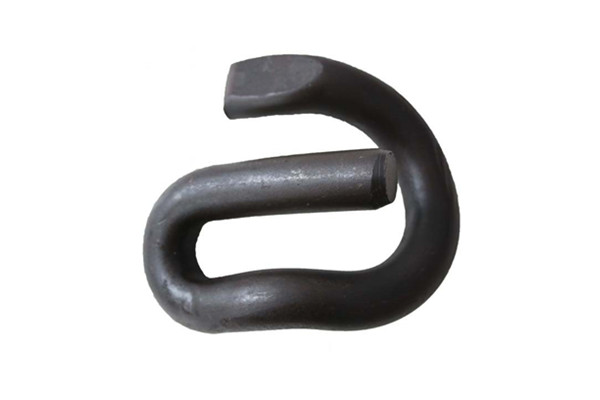

E2055 rail clips belong to Pandrol rail clips. It is a kind of E-type rail clips.
E2055 Rail Clip Specifications:
Material: 60Si2Cr, 55SiMn, 38Si7
Diameter: Ø20
Weight: 0.80 kg
Hardness: HRC 42-47
Fatigue life: 3-5 million cycle without breaking
Standard: GB/T 1222, DIN 17221
Surface treatment: black, galvanized, galvanized, ordinary, dacromet.
Application: railways, subways, high-speed railways, tunnels.
E2055 Rail Clip Features:
1. Safe & reliable system from the original e-clip designer
2. No thread self-tightening design, the system does not need to check the torque
3. A wide range of designs suitable for various applications and environments.
Rail Clip Production Process:
Shearing-heating to forging temperature-forming-quenching-tempering-inspection-packaging.

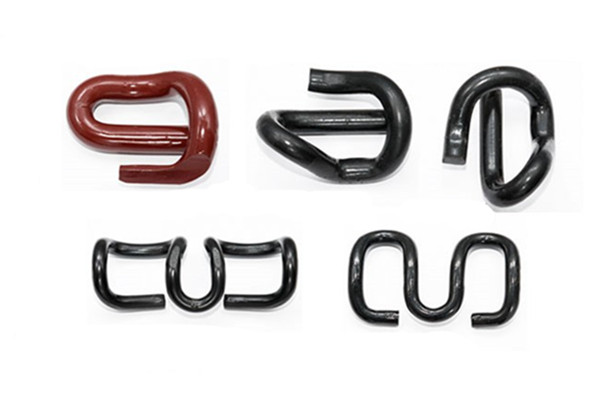

Kingrail Parts can also provide the following rail clips:
1. E-type rail clips: E1609, E1804, E1806, E1809, E1817, E2001, E2003, E2005, E2006, E2007, E2009, E2039, E2055, E2056, E2063, E2091, etc.
2. PR series rail clips: PR85, PR309, PR401, PR601A, etc.

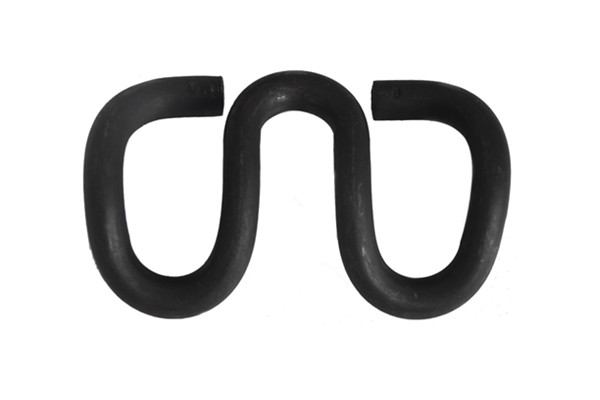

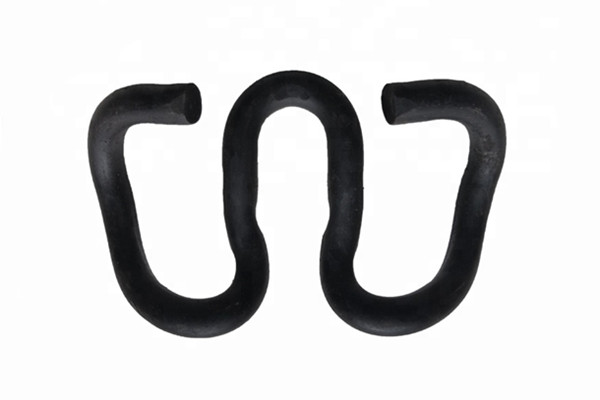

3. SKL tension clamp: SKL1, SKL2, SKL3, SKL12, SKL14, etc

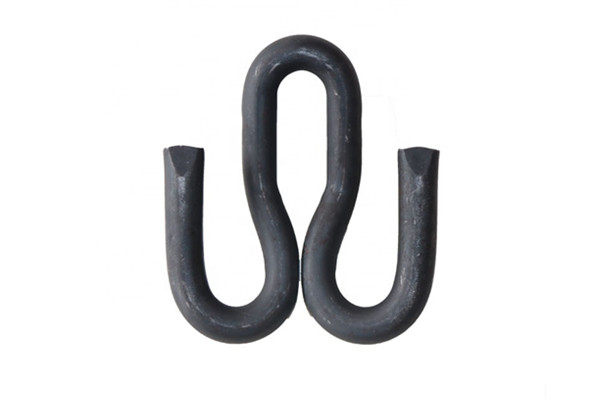

4. Other rail clips: Russian rail clips, Fastclip, Deenik clip, Gauge Lock Clip
5. Customize rail clip according to drawings or customer requirements.
