Boat spikes are made of diamond heads or button heads and are used in marine engineering. We have plain steel or hot-dip galvanized finishes available.
All of our boat spikes are manufactured to the latest AREMA or AREA specifications, in either mild or high carbon steel.

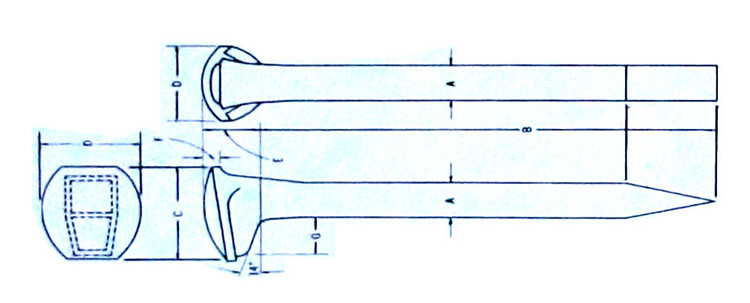

Drawing:
|
Dimensions |
(Inches) |
||||||
|
Size of Spike |
Head |
Length of Taper of Point |
|||||
|
Thickness |
Length |
Length |
Width |
Thickness |
Thickness of Heel |
Length of Hook |
|
|
A |
B |
C |
D |
E |
F |
G |
H |
|
9/16 |
4-5/8 |
1-1/2 |
1-1/4 |
5/8 |
5/32 |
5/8 |
1-1/8 |
|
9/16 |
5 |
1-1/2 |
1-1/4 |
5/8 |
5/32 |
5/8 |
1-1/8 |
|
9/16 |
5-1/2 |
1-1/2 |
1-1/4 |
5/8 |
5/32 |
5/8 |
1-1/8 |
|
9/16 |
6 |
1-1/2 |
1-1/4 |
5/8 |
5/32 |
5/8 |
1-1/8 |
|
5/8 |
5 |
1-9/16 |
1-5/16 |
11/16 |
5/32 |
11/16 |
1-1/4 |
|
5/8 |
5-1/2 |
1-9/16 |
1-5/16 |
11/16 |
5/32 |
11/16 |
1-1/4 |
|
5/8 |
6 |
1-9/16 |
1-5/16 |
11/16 |
5/32 |
11/16 |
1-1/4 |
|
5/8 |
6-1/2 |
1-9/16 |
1-5/16 |
11/16 |
5/32 |
11/16 |
1-1/4 |
|
AREA reinforced throat 1963 design-9/16"and 5/8* |
|||||||
