22kg/m rails are usually used in tram rails, crane rails, slipways and other applications.
The 22kg rail of rail produced by Kingrail Parts is manufactured in accordance with the Japanese industrial standard E1103-M, with a length of 12.19 meters.
Specification:
| type | weight (kg/m) | material | length (m) |
| 22Kg | 22.30 | Q235/55Q | 6-10m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 93.66 | 93.66 | 50.8 | 10.72 |

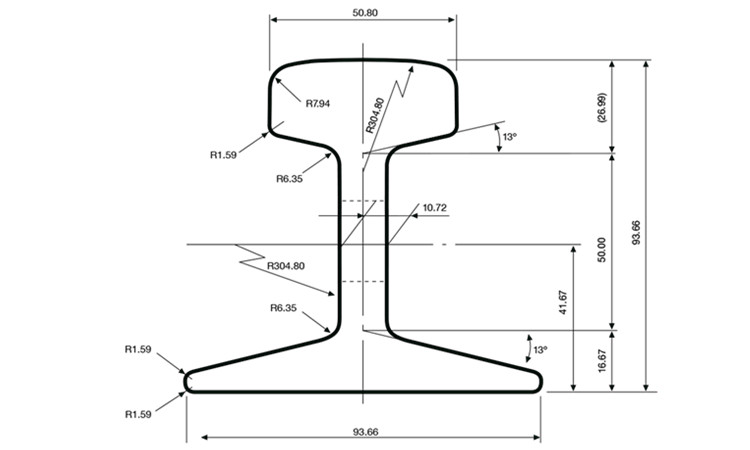

Drawing:
Manufacturing process
Raw materials--Pretreatment--Refining--Vacuum Degassing--Continuous Bloom Casting--Rolling--Heat treatment--Straightening--Inspection--Sawing and drilling--shipping
