TR45 rail is ASTM A759 90 RA rail, used for factory railways in America. The length is 39 to 80 feet, and the materials are SS and HH.
Kingrail Parts can supply a variety of rails, including light rails, AREMA standard rails, such as TR45 rails, heavy rails, crane rails, etc., with different standards and specifications.
Specifications
Size: AREMA 90ARA-A rail, AREMA TR45 rail
Length: 12m~25m or other lengths as required by customers
Material: high strength, medium strength, standard strength
Standard: AREMA
|
size |
Dimension(mm) |
weight |
Material |
Length (m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
90ARA-A(TR45) |
65.09 |
142.88 |
130.18 |
14.29 |
44.65 |
900A/1100 |
12-25 |

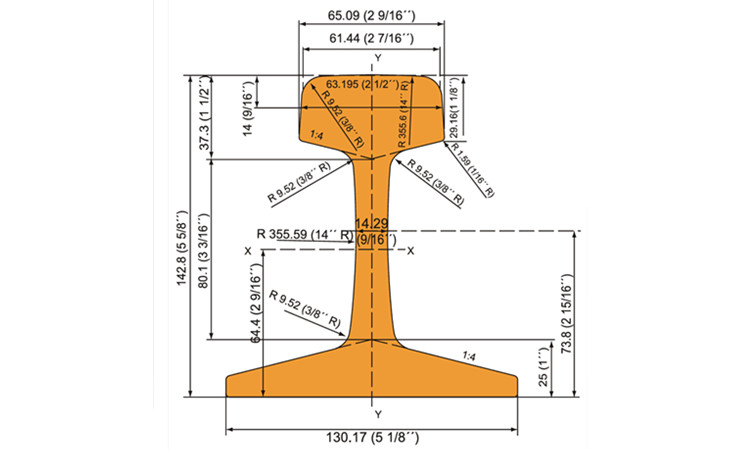

Drawings
