55E1 Railway Rail (also known as U55) is a high-end heavy rail designed to meet the stringent requirements of European mainline railways, heavy-haul freight networks and industrial heavy-haul systems. The rail complies with EN 13674-1 and EN 13674-4 standards and is manufactured from advanced pearlitic steel grades (R260, R350HT)
Kingrail Parts can supply a wide range of rails including light rails, EN standard rails such as 55E1 rails, heavy rails, crane rails, etc., with different standards and specifications.
Specifications
Type: Heavy Duty Rail
Material: R260/R350HT
Weight: 56.03kg/m
Standard: EN 13674-1-2003
| Product Name | 55E1 Rail | ||||||
| Standard | EN 13674-1-2003 | ||||||
| Model | DIMENSION | Weight | Material | Length | |||
| A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
| 55E1 RAIL | 62 | 155 | 134 | 19 | 56.03 | R260/R350HT |
12-25 |

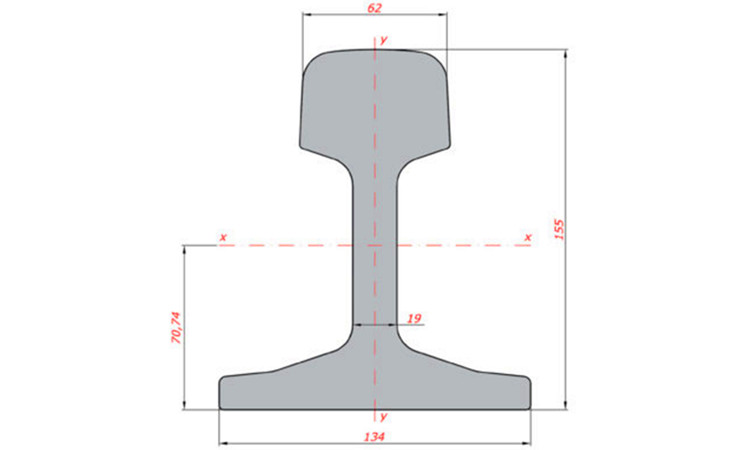

Drawings
