The S30 rail is manufactured in accordance with the European standard DIN 5901, with a mass of 30.03 kg per meter.
Kingrail Parts can provide various rails, including different standards and specifications of S30 rails, heavy rails, and crane rails.
Specification:
| Size | Specifications |
Weight (kg/m) |
Steel Grade |
Length(m) |
|||
| A(mm) | B(mm) | C(mm) | t(mm) | ||||
| S30 | 108 | 108 | 60.3 | 12.3 | 30.03 | RO700 | 6-12 |

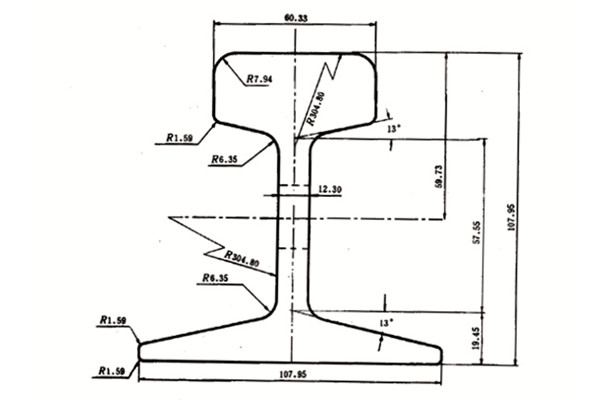

Drawing:
Manufacturing process
Raw materials -- Pretreatment -- Refining -- Vacuum Degassing -- Continuous Bloom Casting -- Rolling -- Heat treatment -- Straightening -- Inspection -- Sawing and drilling -- shipping
