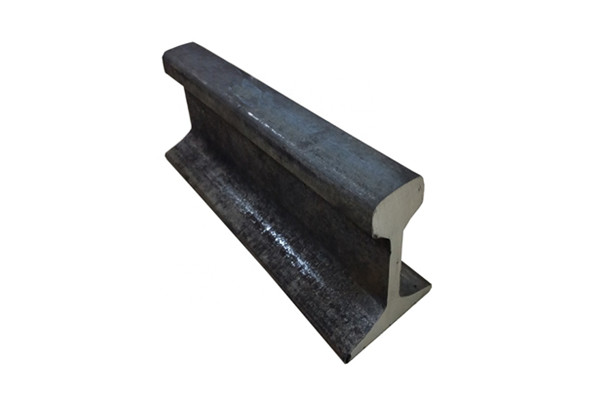

JIS standard rail is a hot rolled rail manufactured in accordance with JIS E1103/1101 and JIS E1103-91.
As a professional supplier, Kingrail Parts can provide JIS rails in various sizes. Such as: JIS 15kg rail, JIS 22kg rail, JIS 30kg rail, JIS 50N rail, CR 73 rail, CR 100 rail, etc.
Specifications:
|
Size |
Rail height(mm) |
Bottom Width(mm) |
Head Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
|
9kg |
63.50 |
63.50 |
32.10 |
5.90 |
8.94 |
|
10kg |
66.67 |
66.67 |
34.13 |
6.35 |
10.10 |
|
12kg |
69.85 |
69.85 |
38.10 |
7.54 |
12.20 |
|
JIS 15kg |
79.37 |
79.37 |
42.86 |
8.33 |
15.20 |
|
JIS 22kg |
93.66 |
93.66 |
50.80 |
10.72 |
22.30 |
|
JIS 30kg(30A) |
107.95 |
107.95 |
60.33 |
12.3 |
30.10 |
|
JIS 37kg(37A) |
122.24 |
122.24 |
62.71 |
13.49 |
37.20 |
|
40kgN(40N) |
140.00 |
122.00 |
64.00 |
14.00 |
40.9 |
|
Size |
Rail height(mm) |
Bottom Width(mm) |
Head Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
|
JIS 50kg (50PS) |
144.46 |
127.00 |
67.87 |
14.29 |
50.4 |
|
50kgN(50N) |
153.00 |
127.00 |
65.00 |
15.00 |
50.4 |
|
60kg |
174.00 |
145.00 |
65.00 |
16.50 |
60.8 |
|
CR73 |
135.00 |
140.00 |
100.00 |
32.00 |
73.30 |
|
CR100 |
150.00 |
155.00 |
120.00 |
39.00 |
100.20 |
Please contact us for more information and quotation.
