Kingrail Parts is a global leader in delivering crane rails for port and terminal projects and industries, supplying customers with more than 30 different rail sections. We are a trusted crane rail supplier and manufacturer.
Our crane rails are certified to the international standard ISO 9001 and are widely used in heavy duty, high speed, port/terminal and construction markets in various countries.
Kingrail Parts has the largest product portfolio including a full range of DIN crane rails, MRS crane rails, CR crane rails and many other specific rails.

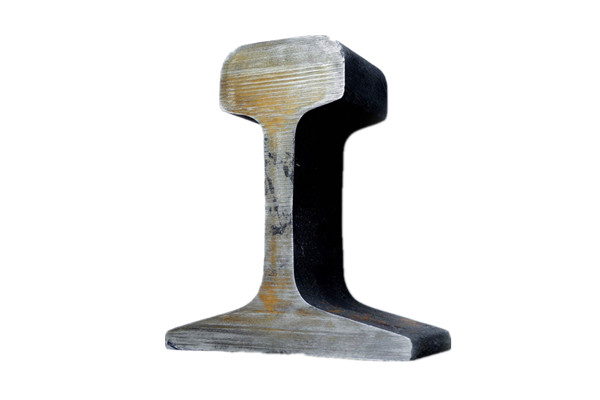

1. Din Crane Rails
|
Type of Rail |
Standard |
Dimensions mm |
Section S |
Mass M |
|||
|
H |
B |
C |
E |
cm² |
kg/m |
||
|
A45 |
DIN 536 P1:1991 |
55,00 |
125,00 |
45,00 |
24,00 |
28,20 |
22,10 |
|
A55 |
DIN 536 P1:1991 |
65,00 |
150,00 |
55,00 |
31,00 |
40,50 |
31,80 |
|
A65 |
DIN 536 P1:1991 |
75,00 |
175,00 |
65,00 |
38,00 |
54,90 |
43,10 |
|
A75 |
DIN 536 P1:1991 |
85,00 |
200,00 |
75,00 |
45,00 |
71,60 |
56,20 |
|
A100 |
DIN 536 P1:1991 |
95,00 |
200,00 |
100,00 |
60,00 |
94,70 |
74,30 |
|
A120 |
DIN 536 P1:1991 |
105,00 |
220,00 |
120,00 |
72,00 |
127,40 |
100,00 |
|
A150 |
DIN 536 P1:1991 |
150,00 |
220,00 |
150,00 |
80,00 |
191,40 |
150,30 |

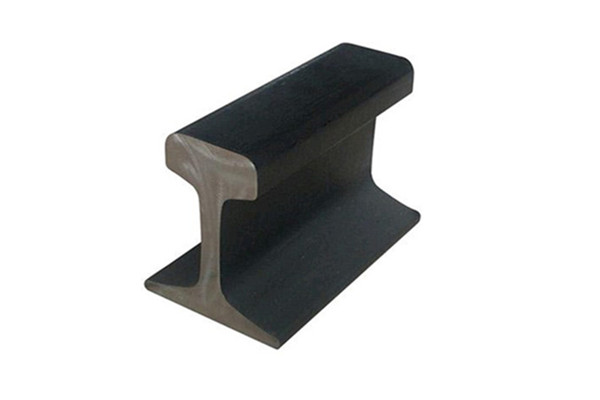

2. American Crane Rails
|
Type of Rail |
Standard |
Dimensions mm |
Section S |
Mass M |
|||
|
H |
B |
C |
E |
cm² |
kg/m |
||
|
CR104 (MRS 51) |
American standard |
127,00 |
127,00 |
63,50 |
25,40 |
66,40 |
51,59 |
|
CR105 (MRS 52) |
ArcelorMittal Specification |
131,80 |
131,80 |
65,10 |
23,80 |
66,40 |
52,09 |
|
CR135 (MRS 67) |
American standard |
146,05 |
131,76 |
87,30 |
31,80 |
85,80 |
66,97 |
|
CR171 (MRS 85) |
American standard |
152,40 |
152,40 |
109,20 |
31,80 |
108,38 |
84,83 |
|
CR175(MRS 87B) |
American standard |
152,40 |
152,40 |
108,00 |
38,10 |
110,30 |
86,80 |

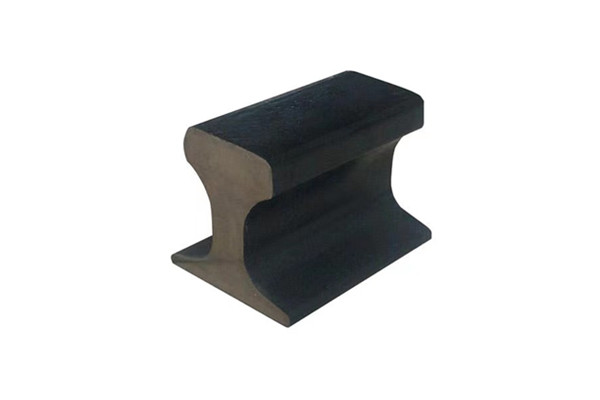

3. Chinese Standard Crane Rails
|
Size |
Rail height(mm) |
Bottom Width(mm) |
Head Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
|
QU70 |
120 |
120 |
70 |
28 |
52.8 |
|
QU80 |
130 |
130 |
80 |
32 |
63.69 |
|
QU100 |
150 |
150 |
100 |
38 |
88.96 |
|
QU120 |
170 |
170 |
120 |
44 |
118.1 |
|

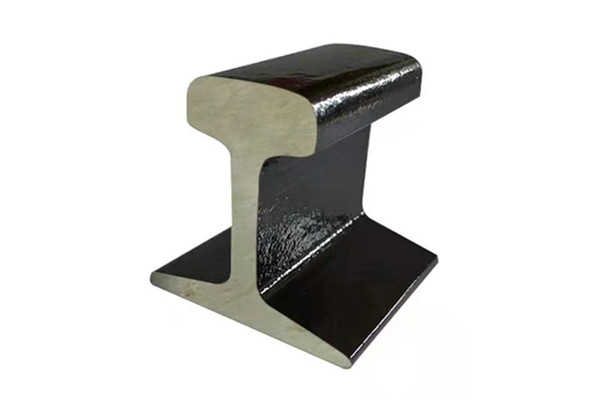

Type of Rail |
Standard |
Dimensions mm |
Section S |
Mass M |
|||
|
H |
B |
C |
E |
cm² |
kg/m |
||
|
MRS73 |
Kingrail Specification |
157,00 |
146,00 |
70,00 |
32,00 |
93,80 |
73,63 |
|
MRS86 |
Kingrail Specification |
102,00 |
165,00 |
102,00 |
80,30 |
108,90 |
85,50 |
|
MRS87A |
Kingrail Specification |
152,40 |
152,40 |
101,60 |
34,90 |
111,30 |
86,80 |
|
MRS125 |
Kingrail Specification |
180,00 |
180,00 |
120,00 |
40,00 |
160,20 |
125,00 |
|
MRS192 |
Kingrail Specification |
157,20 |
229,00 |
140,00 |
128,30 |
244,50 |
192,00 |
|
MRS221 |
Kingrail Specification |
160,00 |
220,00 |
220,00 |
145,00 |
282,10 |
221,40 |
|
AS86 |
Kingrail Specification |
152,46 |
150,00 |
101,60 |
35,00 |
109,40 |
85,88 |
|
CR73 |
Kingrail Specification |
135,00 |
140,00 |
100,00 |
32,00 |
93,40 |
73,30 |
|
CR100 |
Kingrail Specification |
150,00 |
155,00 |
120,00 |
39,00 |
127,70 |
100,20 |
|
CRS140 |
Kingrail Specification |
150,00 |
200,00 |
150,00 |
80,00 |
178,10 |
139,80 |
|
SP100 |
Kingrail Specification |
150,00 |
150,00 |
100,00 |
38,00 |
113,40 |
89,05 |
|
SP120 |
Kingrail Specification |
170,00 |
170,00 |
120,00 |
44,00 |
150,69 |
118,28 |

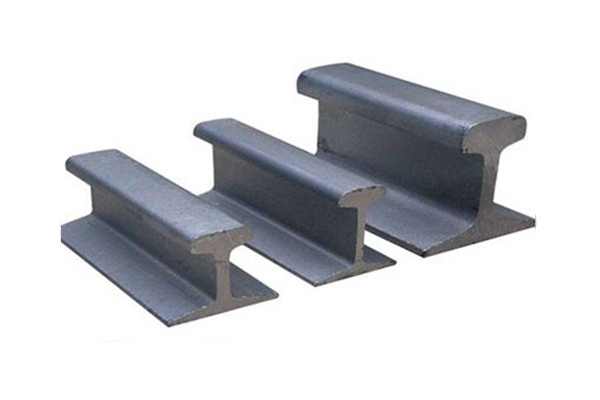

5.Girder Crane Rails
|
Type of Rail |
Standard |
Dimensions mm |
Mass M |
||||
|
H |
B |
C1 |
C2 |
L |
kg/m |
||
|
GCRD 42 |
Kingrail Specification |
60,00 |
200,00 |
53,00 |
18,00 |
60,00 |
41,91 |
|
GCRD 45 |
Kingrail Specification |
60,00 |
218,00 |
60,00 |
20,00 |
70,00 |
45,85 |
|
GCRD 108 |
Kingrail Specification |
100,00 |
263,00 |
61,00 |
61,00 |
75,00 |
107,90 |
|
GCRD 183 |
Kingrail Specification |
120,00 |
280,00 |
75,00 |
75,00 |
50 |
183,06 |
Contact us
Please contact us for more information and quotations.
