54E1 (UIC54) rail is manufactured according to European standard EN 13674-1. It is used for railway construction. This is a T-section rail (flat-bottomed rail) with a mass of 54,77kg per meter.
54E1 UIC54 rail is mainly used as a railway track for heavy vehicles, and can also be used in underground mining and crane industries.
UIC54 Rail Specifications:
Material: R900A/R1100
Hardness: R260, R320
Type: Heavy Rail
Model: UIC54 UIC54E1
Bolt hole diameter: 30mm
Inspection standard: EN13674
Standard: EN 13674 – 4

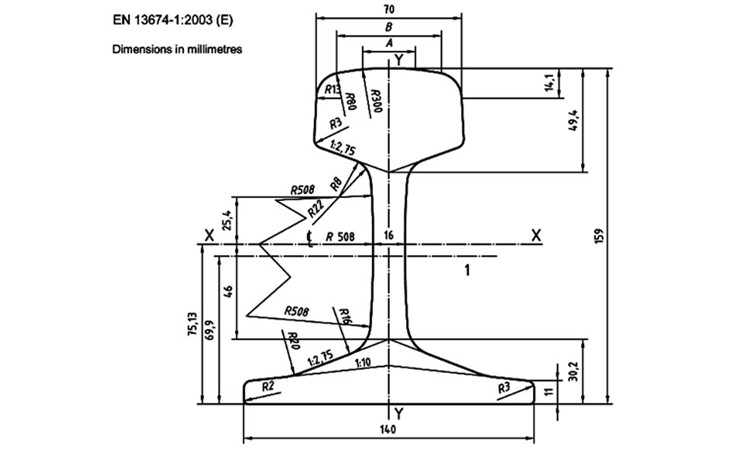

UIC 54 Rail Size:
Type of Rail | Standard | Dimensions (mm) | Section S | Mass m | ||||
H | B | C | D | E | cm² | kg/m | ||
European standard EN 13674-1 | ||||||||
54E1 (UIC54) | EN 13674 - 1 | 159,00 | 140,00 | 70,00 | 49,40 | 16,00 | 68,77 | 54,77 |
Mechanical Properties of UIC 54 Rail:
Standard | Steel Grades | Mechanical Properties | ||
Rm MPa | min A5 % | HB | ||
EN 13674 - 1 (2006) | ||||
R200 |
min 680 |
14 | 200 - 240 | |
R260 |
min 880 |
10 | 260 - 300 | |
R260 MN |
min 880 |
10 | 260 - 300 | |
R350 HT |
min 1175 |
9 | 350 - 390 |
