The ASCE 60 rail is a high-quality rail designed according to the standards of the American Society of Civil Engineers (ASCE). Also known as 60-pound rail or ASCE 60 track, it weighs 60 pounds per yard and is widely used in heavy-haul and high-speed railway systems, mining railways, and industrial transport lines.
ASCE rail sizes are typically defined by weight per yard—for example, an ASCE 85 rail weighs 85 pounds per yard. Among these, ASCE 85 and ASCE 60 are two of the most commonly used specifications on the market.
Kingrail Parts supplies ASCE rails ranging from 25 lbs/yd to 85 lbs/yd, as well as other types of railway rails.
Specifications
Material: 700
Weight: 29.76 kg/m
Length: 6–12 m
Standard: ASTM A1/AREMA
|
Parameter |
Value |
Parameter |
Value |
|
Rail Size |
ASCE60 / 60lb Rail |
Rail Type |
Light-duty Rail |
|
Standard |
ASTM A1 |
Material |
Q235B, 50Q |
|
Rail Height |
107.95 mm |
Head Width |
60.33 mm |
|
Bottom Width |
107.95 mm |
Web Thickness |
12.30 mm |
|
Weight |
30.10 kg/m |
Length |
6-12 m or customized |

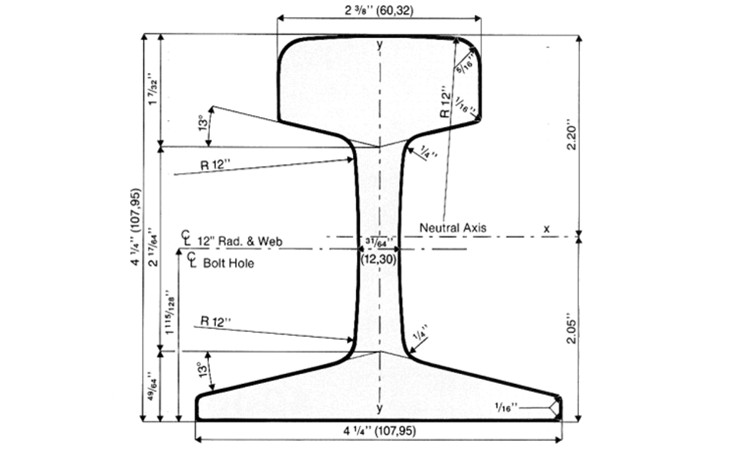

Drawing
