Rail profile 60E1 (UIC60) manufactured according to European standard EN 13674-1, mass 60,21 kg per meter.
Specifications
Size: 60E1 UIC60 rail
Length: 5m~25m or other lengths according to customer requirements
Material: R200, R260, R260MN, R350HT
Standard: EN 13674-4
Uses: railway transportation, crane rails, mine rails, automated warehouses, etc.
| Type of rail | Standard | Dimensions mm | Section S | Mass m | ||||
|---|---|---|---|---|---|---|---|---|
| H | B | C | D | E | cm² | kg/m | ||
| 60E1 (UIC60) | EN 13674 - 1 | 172,00 | 150,00 | 72,00 | 51,00 | 16,50 | 76,70 | 60,21 |

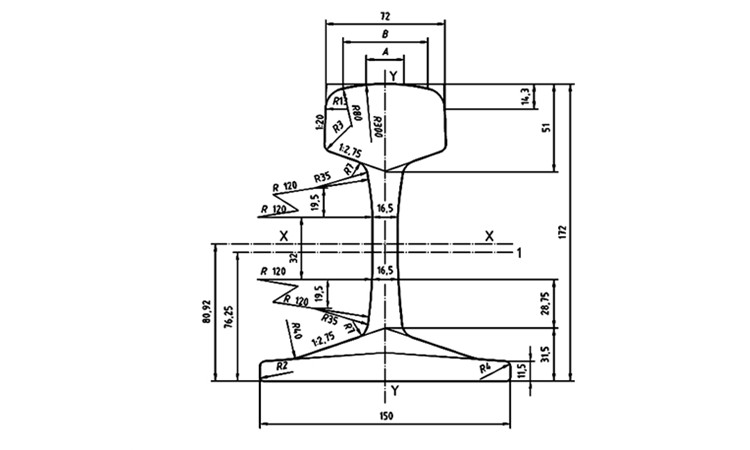

DWG
