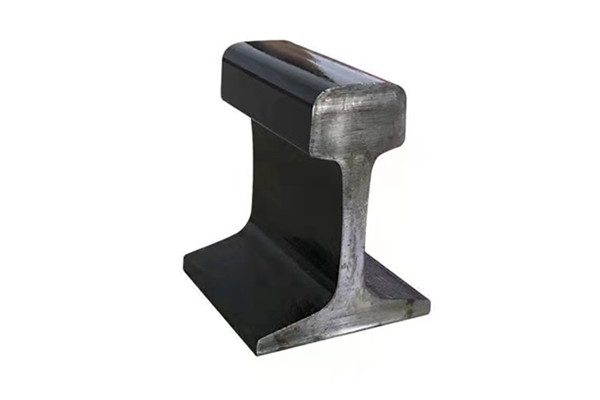

The European standard rail is commonly used in the rails manufactured in accordance with the EN 13674.1-2003 standard for passenger, freight, high -speed, and urban rail transit lines.
As a professional rail supplier, Kingrail Parts can provide you with rails of various sizes in accordance with EN 13674-1 and EN 13674-4 standards.
European standard rail specifications:
|
Type of rail |
Standard |
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
Weight(kg/m) |
Length(m) |
|
39E1(BS 80A) |
EN 13674-4 |
67.00 |
138.00 |
125.00 |
12.00 |
39.77 |
12-25 |
|
45E1(BS 90A) |
EN 13674-4 |
66.60 |
142.8 |
127.00 |
13.80 |
45.10 |
12-25 |
|
45E3(RN 45) |
EN 13674-4 |
66.00 |
142.00 |
130.00 |
15.00 |
44.79 |
12-25 |
|
46E2(U33) |
EN 13674-1 |
62.00 |
145.00 |
134.00 |
15.00 |
46.27 |
12-25 |
|
49E1(S49) |
EN 13674-1 |
67.00 |
149.00 |
125.00 |
14.00 |
49.39 |
12-25 |
|
49E2 |
EN 13674-1 |
67.00 |
148.00 |
125.00 |
14.00 |
49.10 |
12-25 |
|
49E5 |
EN 13674-1 |
67.00 |
149.00 |
125.00 |
14.00 |
49.13 |
12-25 |
|
50E1 |
EN 13674-1 |
65.00 |
153.00 |
134.00 |
15.50 |
50.37 |
12-25 |
|
50E2 |
EN 13674-1 |
72.00 |
151.00 |
140.00 |
15.00 |
49.97 |
12-25 |
|
50E4 |
EN 13674-1 |
70.00 |
152.00 |
125.00 |
15.00 |
50.46 |
12-25 |
|
50E6(U50) |
EN 13674-1 |
65.00 |
153.00 |
140.00 |
15.50 |
50.90 |
12-25 |
|
54E1(UIC54) |
EN 13674-1 |
70.00 |
159.00 |
140.00 |
16.00 |
54.77 |
12-25 |
|
54E2(UIC54E) |
EN 13674-1 |
67.00 |
161.00 |
125.00 |
16.00 |
53.82 |
12-25 |
|
54E3(S54) |
EN 13674-1 |
67.00 |
154.00 |
125.00 |
16.00 |
54.57 |
12-25 |
|
56E1(BS113lb) |
EN 13674-1 |
69.85 |
158.75 |
140.00 |
20.00 |
56.30 |
12-25 |
|
60E1(UIC60) |
EN 13674-1 |
72.00 |
172.00 |
150.00 |
16.50 |
60.21 |
12-25 |
|
60E2 |
EN 13674-1 |
72.00 |
172.00 |
150.00 |
16.50 |
60.03 |
12-25 |
DIN crane rail specification:
|
Rail Type |
Height (mm) |
Head width (mm) |
Base width |
Web thickness (mm) |
Head Depth |
Base Depth (mm) |
Nominal Weight (kg/m) |
Cross Section area |
|
A45 |
55 |
45 |
125 |
24 |
20 |
8 |
22.1 |
28.2 |
|
A55 |
65 |
55 |
150 |
31 |
25 |
9 |
31.8 |
40.5 |
|
A65 |
75 |
65 |
175 |
38 |
30 |
10 |
43.1 |
54.9 |
|
A75 |
85 |
75 |
200 |
45 |
35 |
11 |
56.2 |
71.6 |
|
A100 |
95 |
100 |
200 |
60 |
40 |
12 |
74.3 |
94.7 |
|
A120 |
105 |
120 |
220 |
72 |
47 |
14 |
100 |
127.4 |
|
A150 |
150 |
150 |
220 |
80 |
50 |
14 |
150.3 |
191.4 |
Get more help
Please contact us to get more information and quotations.
