136RE rail is a very popular rail and is a heavy-duty rail mainly used for mining rails. It is produced to the 136 pound rail standard set by AREMA (American Railroad Engineering and Road Maintenance Association).
Due to its high hardness, strength and wear resistance, 136re rails are the best choice for heavy duty lines. It is widely used in the American market where heavy axle weight and long mileage are required.
Specification:
Length: 12m~25m
Material: 55Q U71MN SS 900A
Weight: 67.41kg/m, 136 lb/yd
Standard: ASTM, AREMA 2001
| Type | Head Width(mm) | Rail Height(mm) | Base Width(mm) | Web Thickness(mm) | Weight(kg/m) |
|---|---|---|---|---|---|
| 136RE(136lb) | 74.61 | 185.74 | 152.4 | 17.46 | 67.41 |

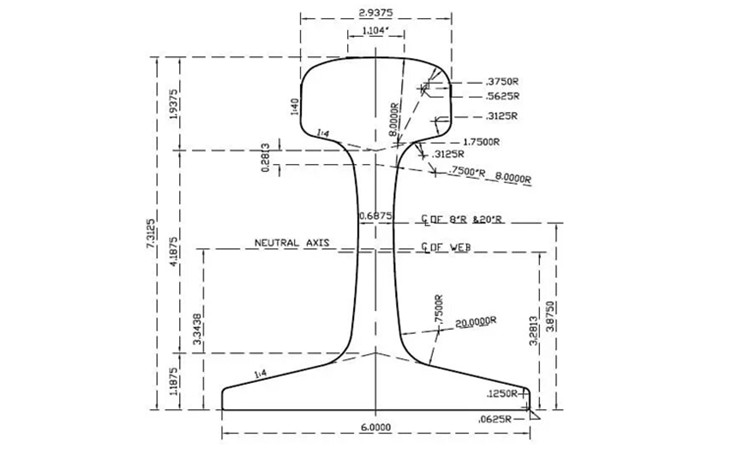

Drawing:
