Kingrail Parts' 60kg rail is a plain carbon steel rail suitable for most network and light freight and mining rail applications. Also suitable for crane rails, conveyor unloaders, slides and workshop pads.
Specification:
| MECHANICAL PROPERTIES | |
| STANDARD LENGTH: | 12.19m & 13.72m |
| CALCULATED MASS: | 60.6 kg/m |
| 0.2% Proof Stress MPa: | 420 |
| Tensile Strength MPa: | 880 |
| % Elongation Gauge Length = 5.65 √So | 8 |
| Surface Hardness H.B: | 260 |

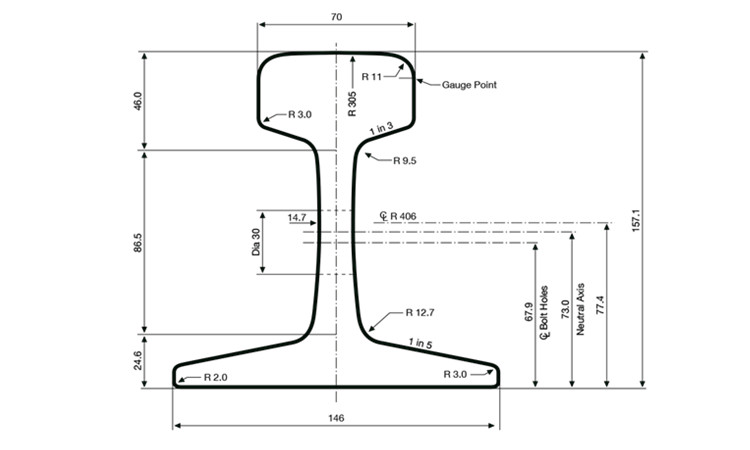

Drawing:
Kingrail Parts' 52kg rail is a plain carbon steel rail suitable for most network and light freight and mining rail applications. Also suitable for crane rails, conveyor unloaders, slides and workshop pads.
Specification:
| MECHANICAL PROPERTIES | |
| STANDARD LENGTH: | 12.19m & 13.72m |
| CALCULATED MASS: | 53 kg/m |
| 0.2% Proof Stress MPa: | 420 |
| Tensile Strength MPa: | 880 |
| % Elongation Gauge Length = 5.65 √So | 8 |
| Surface Hardness H.B: | 260 |

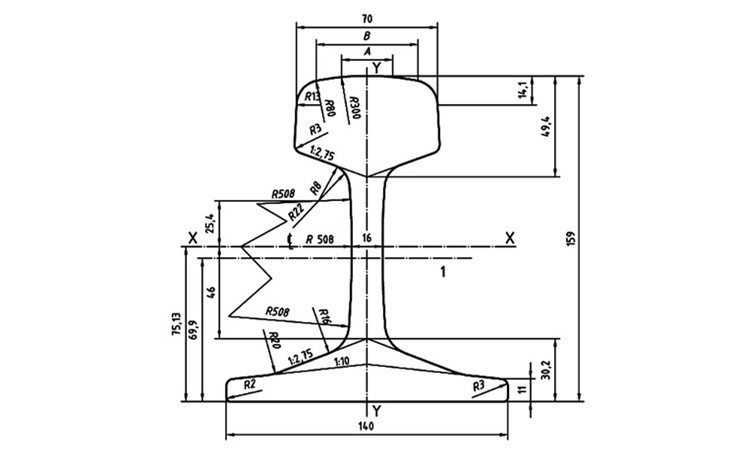

Drawing:
