ASCE 80 rails are mainly used as crane rails, underground mining rails, factories, ports, railways, etc.
ASCE 80 rail from Kingrail Parts is manufactured according to the American ASCE standard, with a mass of 39,68 kg per meter and 80 lbs per yard.
Specifications:
|
Size |
Bottom Width(mm) B |
Head Width(mm) C |
Web Thickness(mm) t |
Weight(kg/m) |
|
ASCE80 |
127.00 |
63.50 |
13.89 |
39.82 |

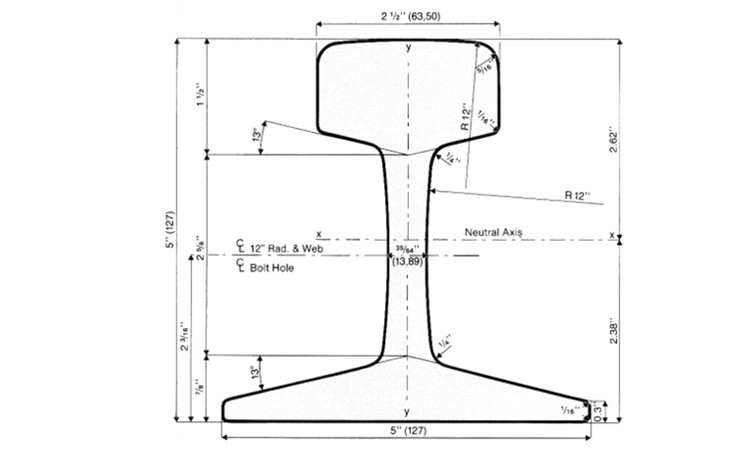

Drawings:
