UIC54 rails are widely used on British National Railways. UIC54 rails are used for heavy vehicle transport railway rails and can also be used in underground mining and lifting industries.
As a professional rail manufacturer, Kingrail Parts can provide high quality UIC 54 Rail. The hardness is R260/350HT. Length is 12 to 30 meters.
Specification:
Weight: 54.77kg/m
Standard: UIC860
Material: R900A/R1100
Length: 12 to 30 meters
| Standard | UIC860-O | ||||||
| Model | DIMENSION | Weight | Material | Length | |||
| A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
| UIC 54 | 70 | 159 | 140 | 16 | 54.43 | 900A/1100 | 12-25 |

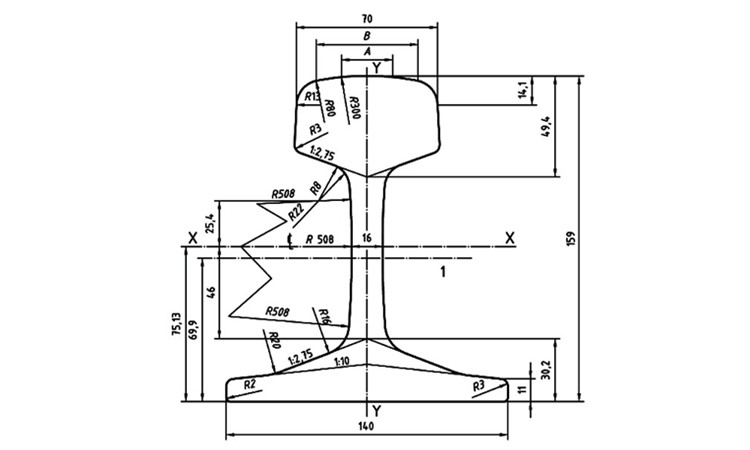

Drawing:
