BS80A rails are mostly used for transportation in mine tunnels and factory workshops, crane hoisting equipment, and the laying of special railway lines.
Kingrail Parts' BS80A rails fall under the BS11-1985 standard. The material is 900A, the hardness is greater than 880 N/mm2, and the length can be 6-12 meters.
Specification:
| Product Name | BS80A RAIL | ||||||
| Standard | BS11:1985 | ||||||
| Model | DIMENSION | Weight | Material | Length | |||
| A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||
| BS80A RAIL | 63.5 | 133.35 | 117.47 | 13.1 | 39.761 | 900A | 8-25 |

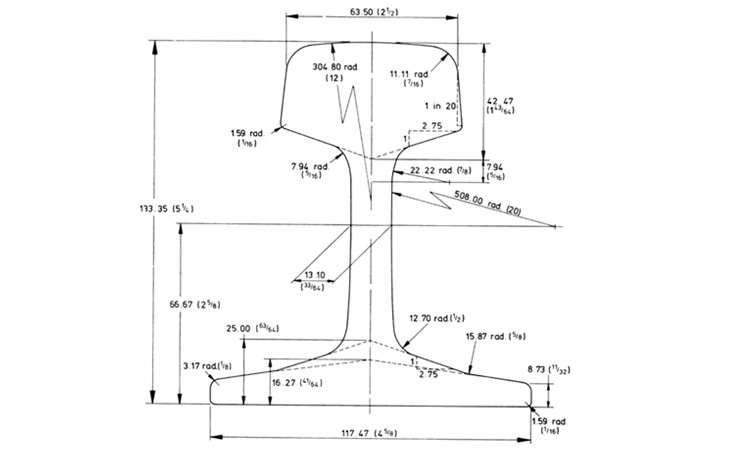

Drawing:
