38kg heavy rails can be used in larger mine tunnels and factory workshops, lifting and hoisting equipment, and the laying of railway dedicated lines.
Kingrail Parts can provide a variety of rails, including heavy rails, such as 38kg heavy rails, light rails, crane rails and other rails of different standards and specifications.
Specifications:
| 38kg Rail Parameters | |||
| Rail Type | Weight(Kg/m) | Material | Length(m) |
| 38kg | 38.733 | 50Mn/U7Mn | 12.5-25 |
| Head Width(mm) | Bottom Width(mm) | Rail Height(mm) | Web Thickness |
| 68 | 114 | 134 | 13 |

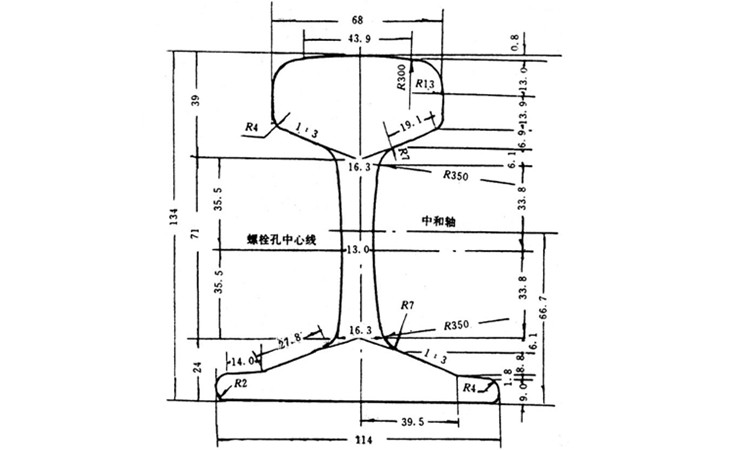

Drawings:
