BS80A rails are BS11-1985 standard and are used for mine railway lines or subways, etc. The material is 900A, the hardness is greater than 880N/mm2, and the length can be 8-25 meters
Kingrail Parts can supply a variety of rails, including light rails, BS standard rails, such as BS80A rails, heavy rails, crane rails, etc., with different standards and specifications.
Specifications
Type: Heavy Rail
Material: 900A
Weight: 39.761kg/m
Standard: BS11:1985
|
Model |
DIMENSION |
Weight |
Material |
Length |
|||
|
A(mm) |
B(mm) |
C(mm) |
t(mm) |
(KG/M) |
(m/PC) |
||
|
BS80A RAIL |
63.5 |
133.35 |
117.47 |
13.1 |
39.761 |
900A |
8-25 |

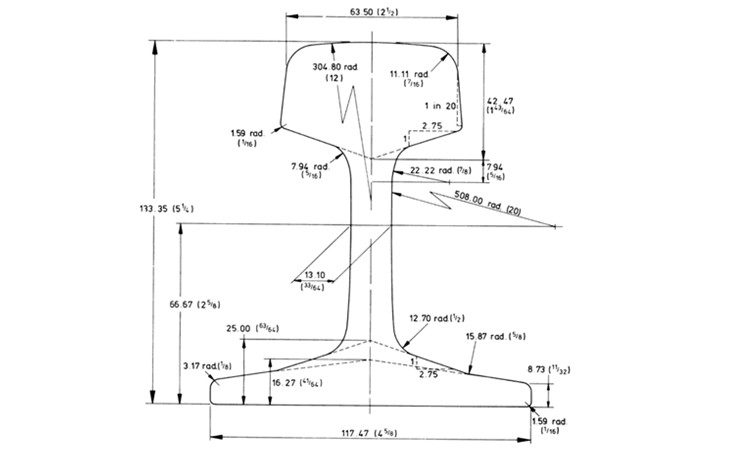

Drawings
