TR68 rail is manufactured according to the American AREMA standard with a mass of 67,50kg/m.
Kingrail Parts can supply a variety of rails, including light rails, AREMA standard rails, such as TR68 rails, heavy rails, crane rails, etc., with different standards and specifications.
Specifications
Material: SS/IH/LA
Weight: 67.41kg/m
Length: 12M/12.5m/18m/25m
Standard: AREMA 2014
|
Profile |
Standard |
Dimensions mm |
Section S |
Mass m |
||||
|
H |
B |
C |
D |
E |
cm² |
kg/m |
||
|
American standard |
||||||||
|
136RE (TR68) |
AREMA |
185,70 |
152,40 |
74,60 |
49,20 |
17,50 |
85,90 |
67,50 |

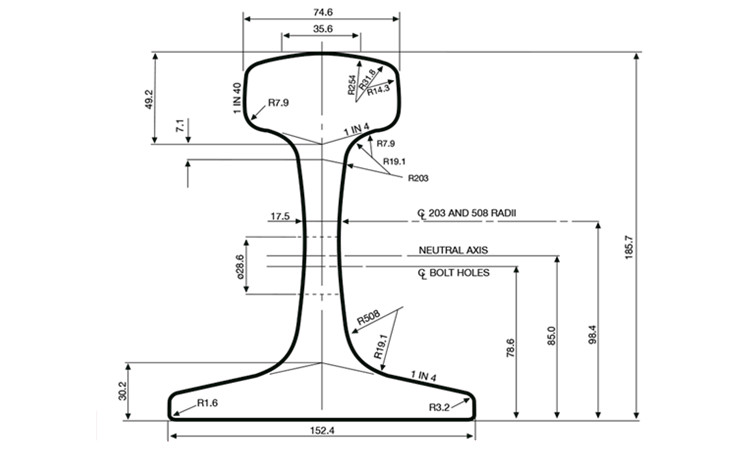

Drawings
