54E3 (S54) rail is mainly used as transport rail and can also be used in underground mining.
Kingrail Parts can supply a wide range of rails including light rails, EN standard rails such as 54E3 rails, heavy rails, crane rails, etc. with different standards and specifications.
Specifications
|
Size |
Rail height(mm) A |
Bottom Width(mm) B |
Head Width(mm) C |
Web Thickness(mm) t |
Weight(kg/m) |
|
54E3(DINS54) |
154.00 |
125.00 |
67.00 |
16.00 |
54.57 |

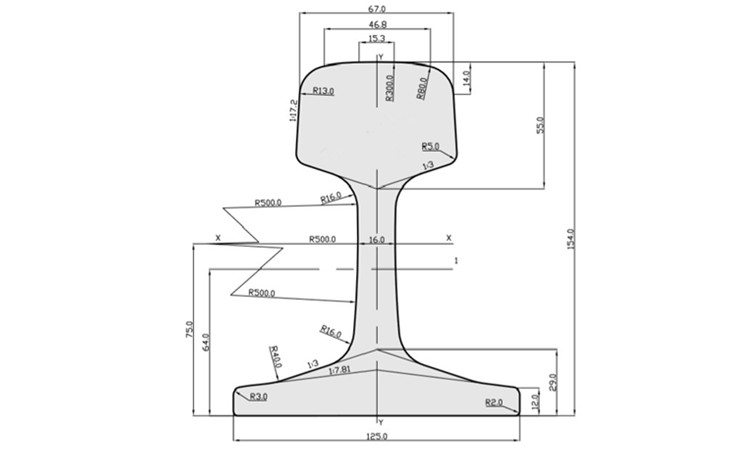

Drawings
