Australian Standard 47KG Rail is a lightweight rail designed for the Australian railway system and complies with the AS1085 standard. The rail weighs 47kg per meter and is ideal for light to medium duty applications.
Kingrail Parts is a trusted and professional rail supplier in China. We can provide Australian Standard Rails in various sizes. Such as:47KG Rail.
Specifications
Standard: AS1085 Standard
Material: 900A/1100
Size: 47kg
Length: 8-25 meters
|
Size |
Dimension(mm) |
Weight (kg/m) |
Length |
Material |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
47KG |
70 |
141.3 |
127 |
14.3 |
46.5 |
8-25 |
900A/1100 |

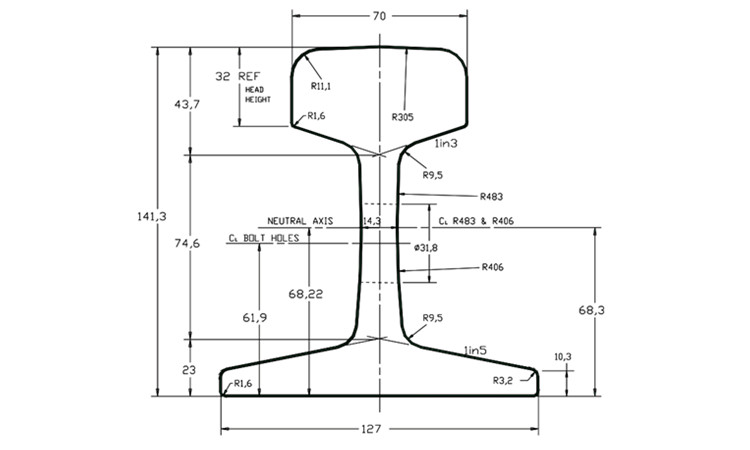

Drawings
