ASCE 60 rail models are manufactured to American Standard ASCE. It is used for light rail applications. This is a T-section rail (flat bottom rail) that weighs 29,76 kilograms per meter, which equates to 60 pounds per yard.
ASCE is the American Society for Civil Engineering that provides standards for the manufacture of various rail industry components. ASCE rails are used in light cranes, mining rails, automated warehouses and other industrial applications. The ASCE 60 rail is one of the most used in the world for this type of application.

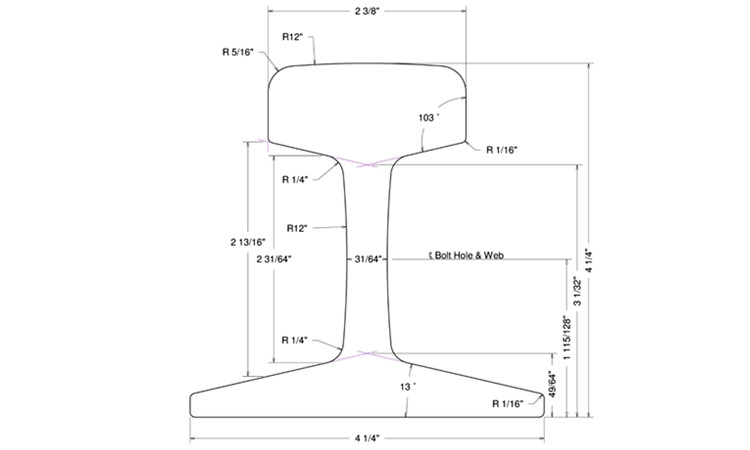

Dimensions:
|
Tipo de Riel |
Estándar |
Dimensiones mm |
Seción S |
Masa m |
||||
|
H |
B |
C |
E |
cm² |
kg/m |
|||
|
ASCE standard |
||||||||
|
ASCE 60 |
ASCE |
107,95 |
107,95 |
60,32 |
12,30 |
38,97 |
29,76 |
|
|
Standar |
Steel grades |
Mechanical properties |
||
|
Rm MPa |
min A5 % |
HB |
||
|
AREMA 2006 |
Standar chemistry |
min 983 |
10 |
min 300 Standard S. Rail min 370 High S. Rail |
|
Low alloy rail steel |
min 983 |
10 |
min 310 Standard S. Rail |
|
|
AREMA 2007 |
Standar chemistry |
min 983 |
10 |
min 310 Standard S. Rail |
|
Low alloy rail steel |
min 983 |
10 |
min 310 Standard S. Rail |
|
