ASCE 45 lb rails are primarily designed for use on light overhead cranes, mining rails, automated warehouse retrieval systems, etc.
Kingrail Parts can supply ASCE 45 LB rail with high quality and competitive price.
Specification:
Type: Light Rail
Material: Q235B, 55Q, U71Mn
Standard: ASTM A1
Length: 12m~25m or other lengths according to customer requirements
Dimensions:
| Model | Dimension | |||
| Head Width(mm) | Height(mm) | Bottom Width(mm) | Web Thickness(mm) | |
| 45LBS Rail | 50 | 94 | 93 | 12 |

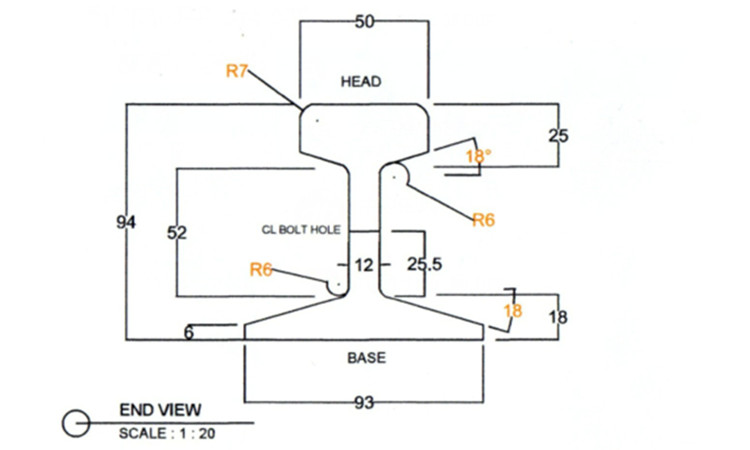

Drawing:
