49E2 rail is one of the heavy duty rails, mainly used as transport rails, and can also be used in underground mining.
Kingrail Parts can supply high quality and competitively priced 49E2 rails.
Specifications:
Material: R260/R350HT
Weight: 49.1kg/m
Length: 12-25m
Standard: EN 13674-1-2003
Dimensions
Size | Rail height(mm) | Bottom Width(mm) | Head Width(mm) | Web Thickness(mm) | Weight(kg/m) |
49E2 | 148.00 | 125.00 | 67.00 | 14.00 | 49.10 |

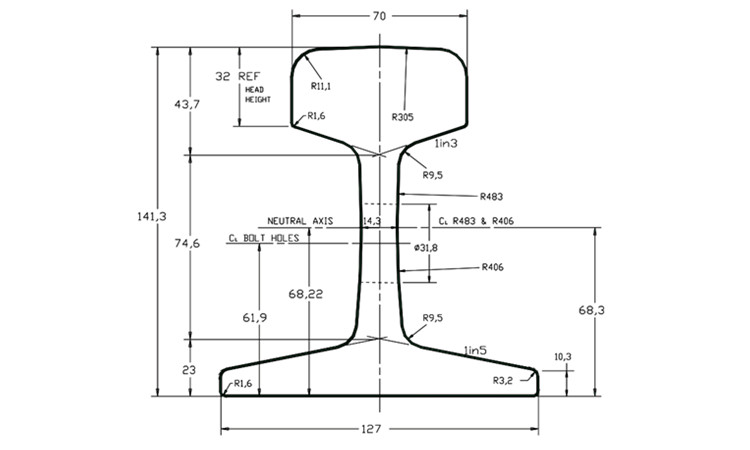

Drawing:
