60LBS rail is typically used on light freight or light rail transit lines.
Kingrail Parts' 60-pound rails are produced in accordance with the American ASCE standard ASTM A1 and are mainly used in North America.
60-pound rails can also be called 60-pound rails and weigh 60 pounds per yard. A 60-pound rail weighs 29.8kg per meter, which is equivalent to 29.8kg/m.
Specification
|
Type |
Head Width(mm) |
Rail Height(mm) |
Base Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
|
60 LBS Rail(ASCE 60) |
60.32 |
107.95 |
107.95 |
12.3 |
29.76 |

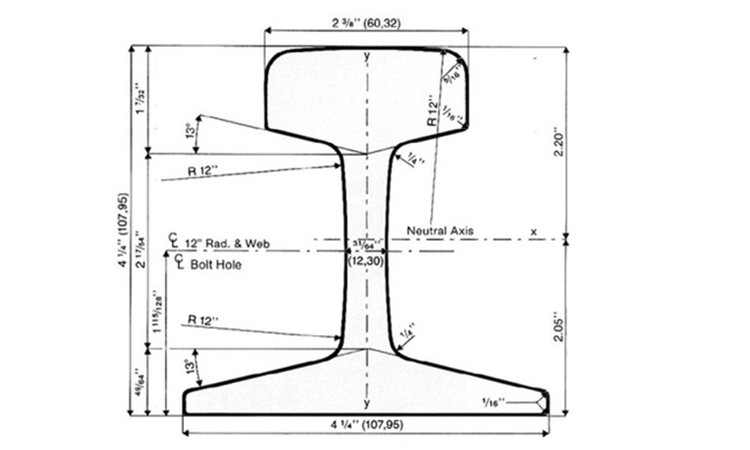

Drawing
Contact us
Please contact us for more information and quotes.
