50E5 (50 UNI) rail is mainly used as transport rail and can also be used in underground mining.
Kingrail Parts can supply a wide range of rails including light rails, EN standard rails such as 50E5 rails, heavy rails, crane rails, etc. with different standards and specifications.
Specifications
|
Size |
Rail height(mm) |
Bottom Width(mm) |
Head Width(mm) |
Web Thickness(mm) |
Weight(kg/m) |
|
50E5 |
148.00 |
135.00 |
67.00 |
14.00 |
49.90 |

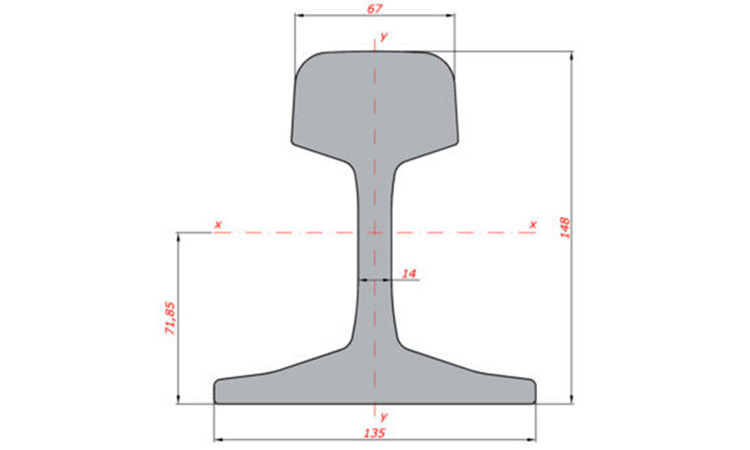

Drawings
