JIS 37kg JIS 37A rails are mostly used for transportation in larger mine tunnels and factory workshops, lifting equipment, railway dedicated line laying, etc.
Kingrail Parts is a company specializing in providing light rail, heavy rail, crane rails and rail accessories. We supply and export high-quality, competitively priced jis37a rails.
Specifications
|
Product Name |
JIS E STANDARD STEEL RAIL |
||||||
|
Standard |
JIS E1103-93/ JISE1101-93 |
||||||
|
Model |
DIMENSION |
Weight |
Material |
Length |
|||
|
A(mm) |
B(mm) |
C(mm) |
t(mm) |
(KG/M) |
(m/PC) |
||
|
JIS 37A |
62.71 |
122.24 |
122.24 |
13.49 |
37.2 |
U71Mn |
10-25 |

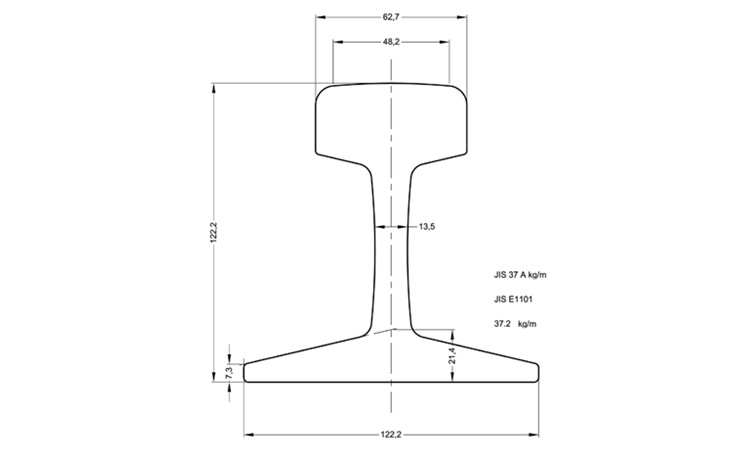

Drawings
