175lbs crane rail is a type of rail designed for crane applications. "175lbs" refers to the weight per yard of the rail, indicating its load-bearing capacity. This type of rail is often used in industrial environments to support cranes that carry heavy loads.
Kingrail Parts can supply a variety of rails, including light rails, ASCE standard rails, such as 175lbs rails, heavy rails, crane rails, etc., with different standards and specifications.
Specifications
Type: Heavy Rail
Material: 900A/1100
Weight: 86.8kg/m
Standard: ASTM A1/AREMA
|
Model |
DIMENSION |
Weight |
Material |
Length |
|||
|
A(mm) |
B(mm) |
C(mm) |
t(mm) |
(KG/M) |
(m/PC) |
||
|
175LBs |
109.86 |
152.4 |
152.4 |
38.1 |
86.8 |
900A/1100 |
12-25 |

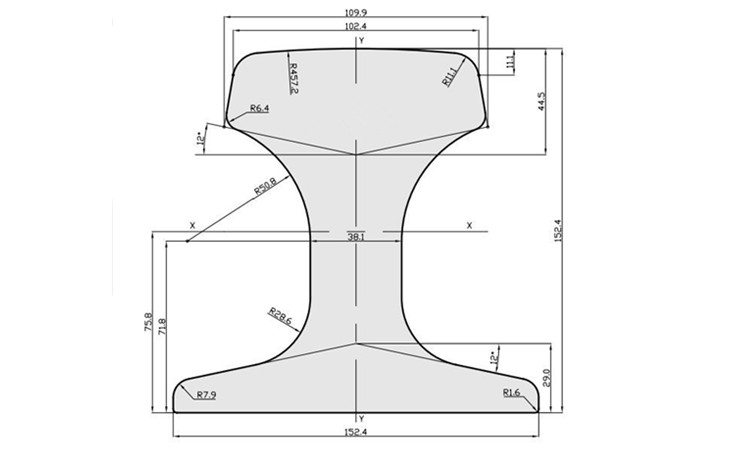

Drawings
