ASCE 175 rail is manufactured according to AREMA and ASTM standard carbon steel application specifications. Standard rail lengths are available in 20ft, 40ft and 60ft. Other lengths are available upon request.
Kingrail Parts can supply a variety of rails, including light rails, ASCE standard rails, such as ASCE 175 rails, heavy rails, crane rails, etc., with different standards and specifications.
Specifications
Type: Heavy Rail
Material: 900A/1100
Weight: 86.8kg/m
Standard: ASTM A1/AREMA
| SIZE | DIMENSION (mm) | WEIGHT (kg/m) | |||
| A | B | C | t | ||
| ASCE 175 | 109.86 | 152.4 | 152.4 | 38.1 | 86.8 |

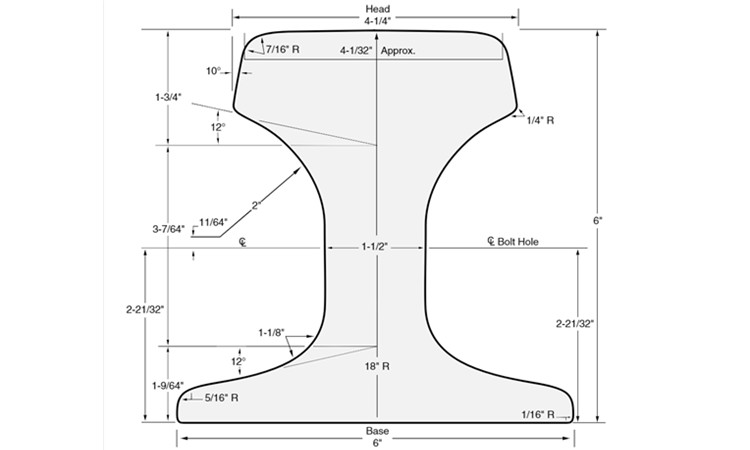

Drawings
